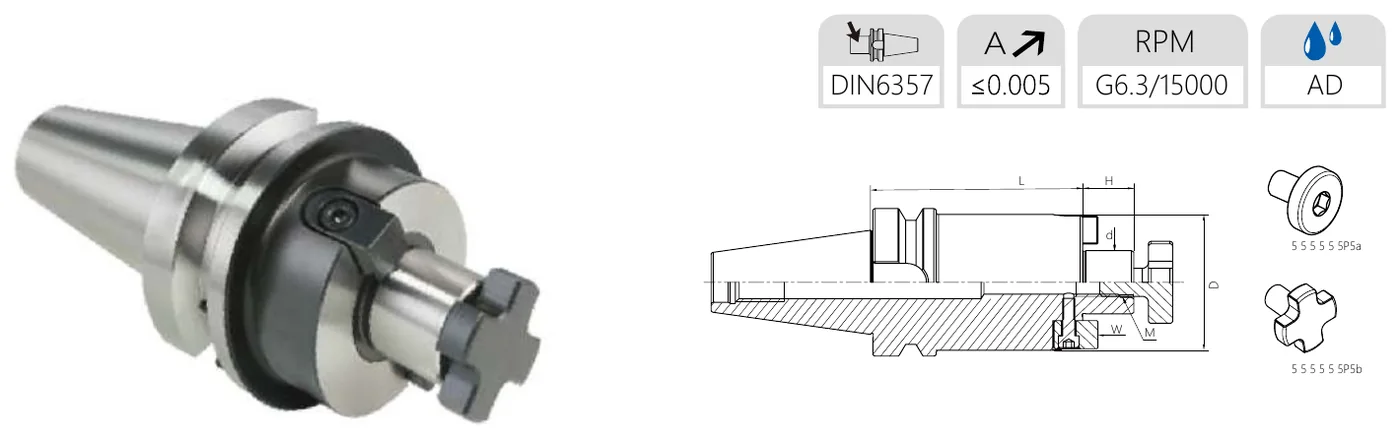

A face mill holder is chosen by the cutter, not by the machine: the arbor diameter and the retaining screw have to match the cutter you already own. Mongtec supplies both the metric DIN 6357 range and a full inch range — which matters, because a shop running inch cutters cannot use a metric arbor and most Taiwanese suppliers only publish metric.
| Arbor ø | Retaining screw |
|---|---|
| ø16 | M8 |
| ø22 | M10 |
| ø27 | M12 |
| ø32 | M16 |
| ø40 | M20 |
| ø60 | M30 |
| Arbor size | Retaining screw |
|---|---|
| 3/4″ | 3/8-24 |
| 1″ | 1/2-20 |
| 1-1/4″ | 5/8-18 |
| 1-1/2″ | 3/4-16 |
HSK-A is also built across this range, in HSK32A to HSK100A, balanced G2.5 at 25,000 rpm throughout.
The combi shell mill holder takes shell mills and face mills on the same arbor, in arbor sizes ø16 · 22 · 27 · 32 · 40 mm
40 / 50 / 60 / 100 / 150 / 160 / 200 / 250 / 300 mm
Body diameters (D, D1), gauge lengths (L2, L1) and the set-screw thread (G) are in the printed catalogue and are supplied with the quotation.
