BMT & VDI Driven Tool Holders, Angle Heads, Tool Holders
Select your machine to instantly find the matching driven tools, angle heads, live centers and clamping systems — or browse the full range and download technical catalogues.
Real data & photos from mongtec-tools.com.Categories, brands, products, photos and compatible-machine lists are pulled from your live website. Photos load from your site, so keep an internet connection when viewing.
0products
Product Lines Overview
Mongtec Precision Inc. – BMT VDI Driven Tools, Angle Heads & CNC Tool Holders, Taiwan
Mongtec Precision Inc. (盟鈦精密) is a Taiwanese precision tooling brand — designed and engineered in Taiwan — specializing in BMT and VDI driven tools (live tooling), angle heads, CNC mill tool holders, quick-change collet chucks, face drivers, live centers, and expanding mandrels. Products are compatible with Mazak, Okuma, DMG MORI, DN Solutions, Doosan, Nakamura Tome, and 80+ other CNC lathe and machining-centre brands.
Product Categories
BMT & VDI Driven Tools – Live-tooling holders for CNC lathes. Axial, radial, and angular driven tools with BMT or VDI turret interfaces. Compatible with all major brands.
Angle Heads – Right-angle machining heads for milling centres. Available in BT30, BT40, BT50, HSK-A63, HSK-A100 interfaces. Models include BT30QER11, BT40QER16, HSK63A, and custom special angle heads.
CNC Mill Tool Holders – Shrink-fit, hydraulic, ER collet (UM nut), power-milling, face-mill and HSK-T holders in BT30/BT40/BT50 and HSK-A63/HSK-A100 interfaces.
Face Drivers & Live Centers – MT-taper face drivers and live centers for CNC lathes and cylindrical grinding machines.
Quick-Change Collet Chucks (SK) – SK back-pull and push-forward collet chuck systems for rapid tooling changeover; SK Mini series available.
CNC Accessories – Grippers, zero nuts, jet spindles, spindle test bars.
PSC – Polygon Shank Coupling (ISO 26623) – 385 published article numbers across polygon sizes PSC32, PSC40, PSC50, PSC63, PSC80 and PSC100 – the coupling sizes designated Capto C3–C10 and PSK C3–C10. External and internal turning tool bodies (DCLNR/L, PCLNR/L, PSKNR/L, SCLCR/L, SDUCR/L, SRSCR/L and more, with high-pressure-coolant variants), PSC-SR face slotting adapters, PSC blanks (BLPSC), CUSA/CVDI/CSQUA/CSQIR/CHYD clamping units, and extension, reduction, side-lock, ER, arbor, SK, HSK and BT adaptors. Browse PSC article numbers by coupling size.
Static Turret Toolholders – OD, double-OD, ID and face static holders for BMT40, BMT45, BMT55, BMT65 and BMT75 turrets, published with full C/K/G/H/X/A/B/E dimensions and weight. Machine platforms include DN Solutions (Doosan), Hardinge, Hyundai WIA, Hwacheon, Goodway, Victor, Spinner, Jyoti, Samsung (SMEC) and Haas.
Swiss-Type Toolholders – Axial and cross driven holders for Swiss-type / sliding-headstock lathes, published with the corresponding Tsugami, Star and Citizen machine-builder codes, ER11/ER16 collets, 1:1 ratio and 6,000–10,000 rpm ratings.
Angle heads, driven (live) tool holders, PSC polygon coupling units and static turret holders — photographed from actual production units. Every driven tool holder ships with an individual inspection report.

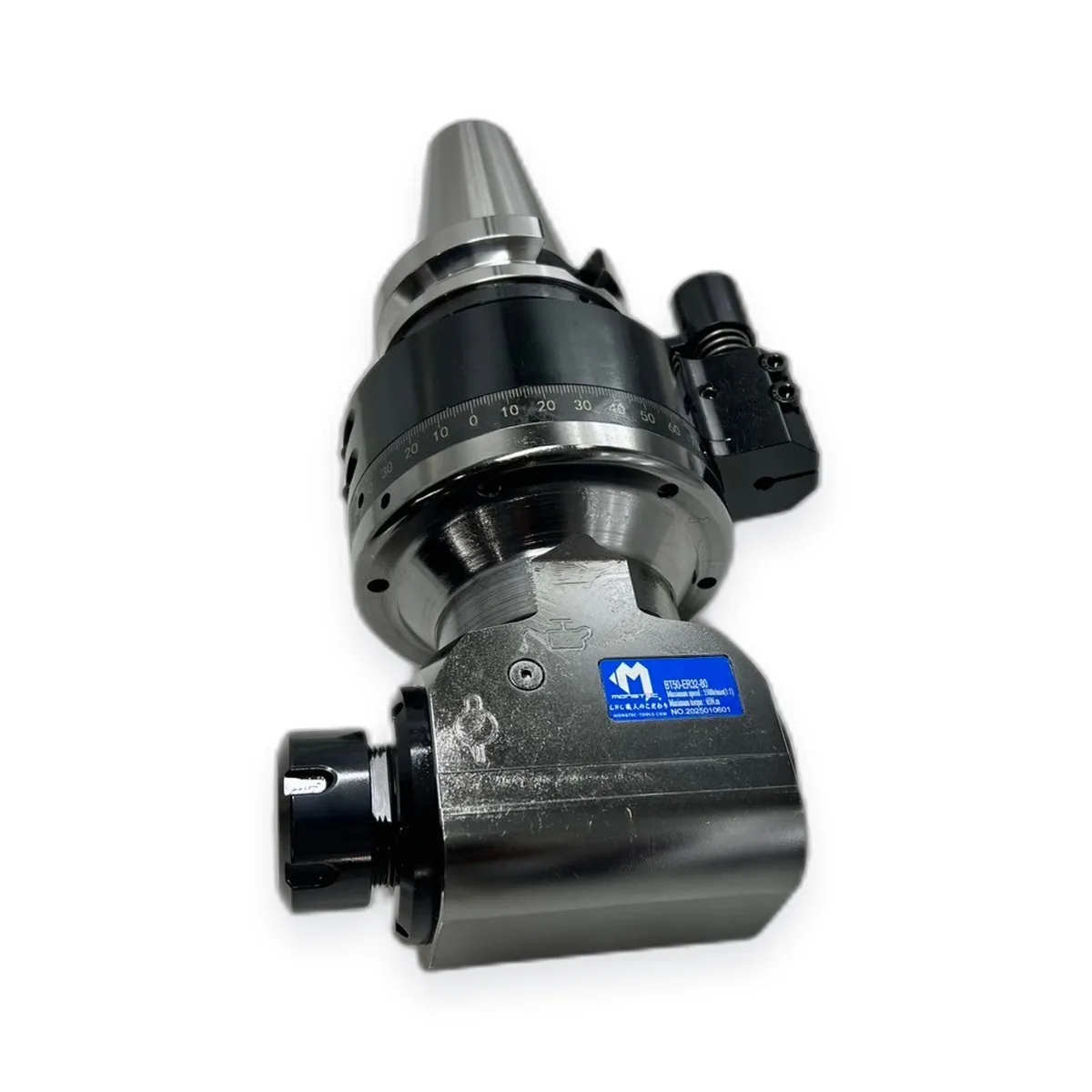

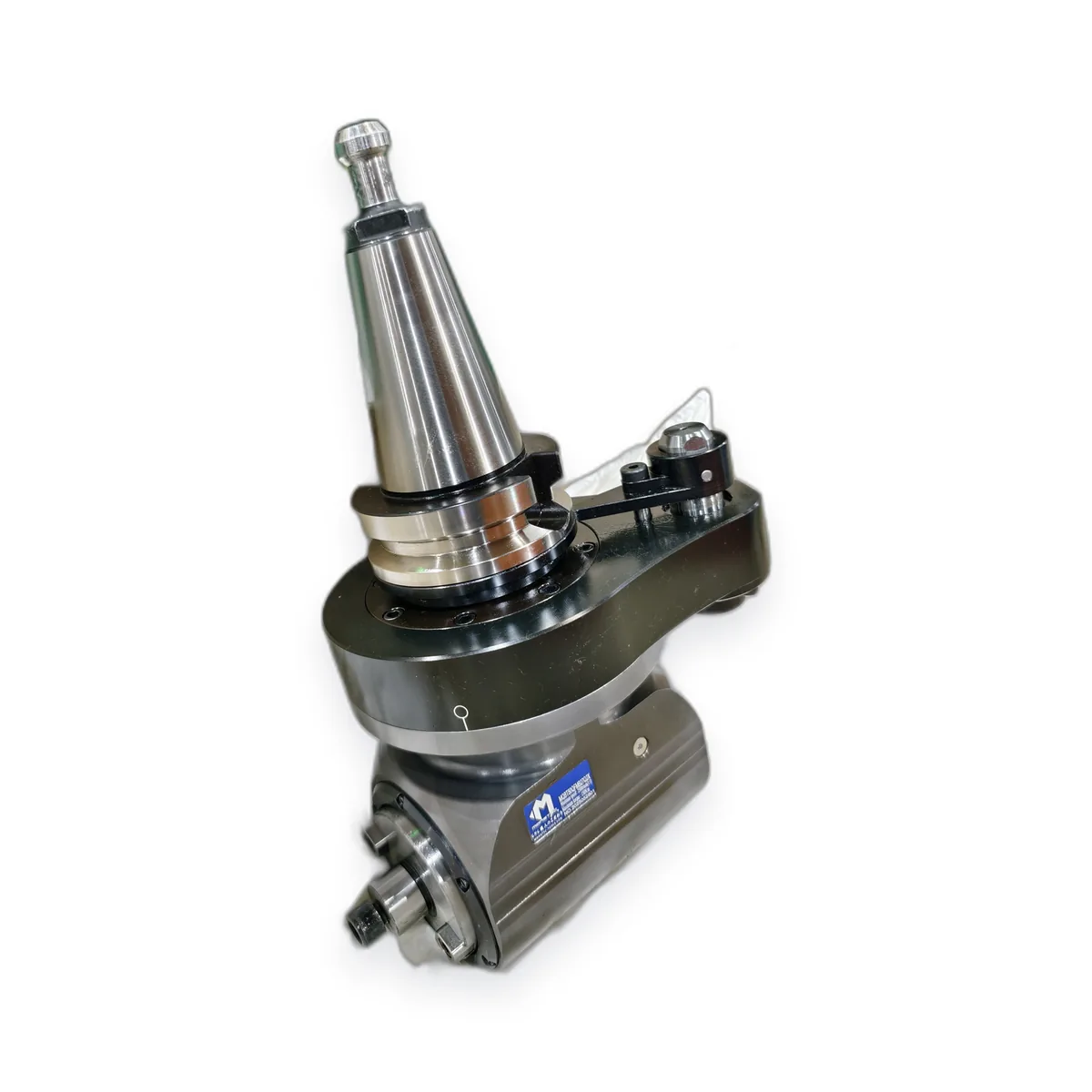

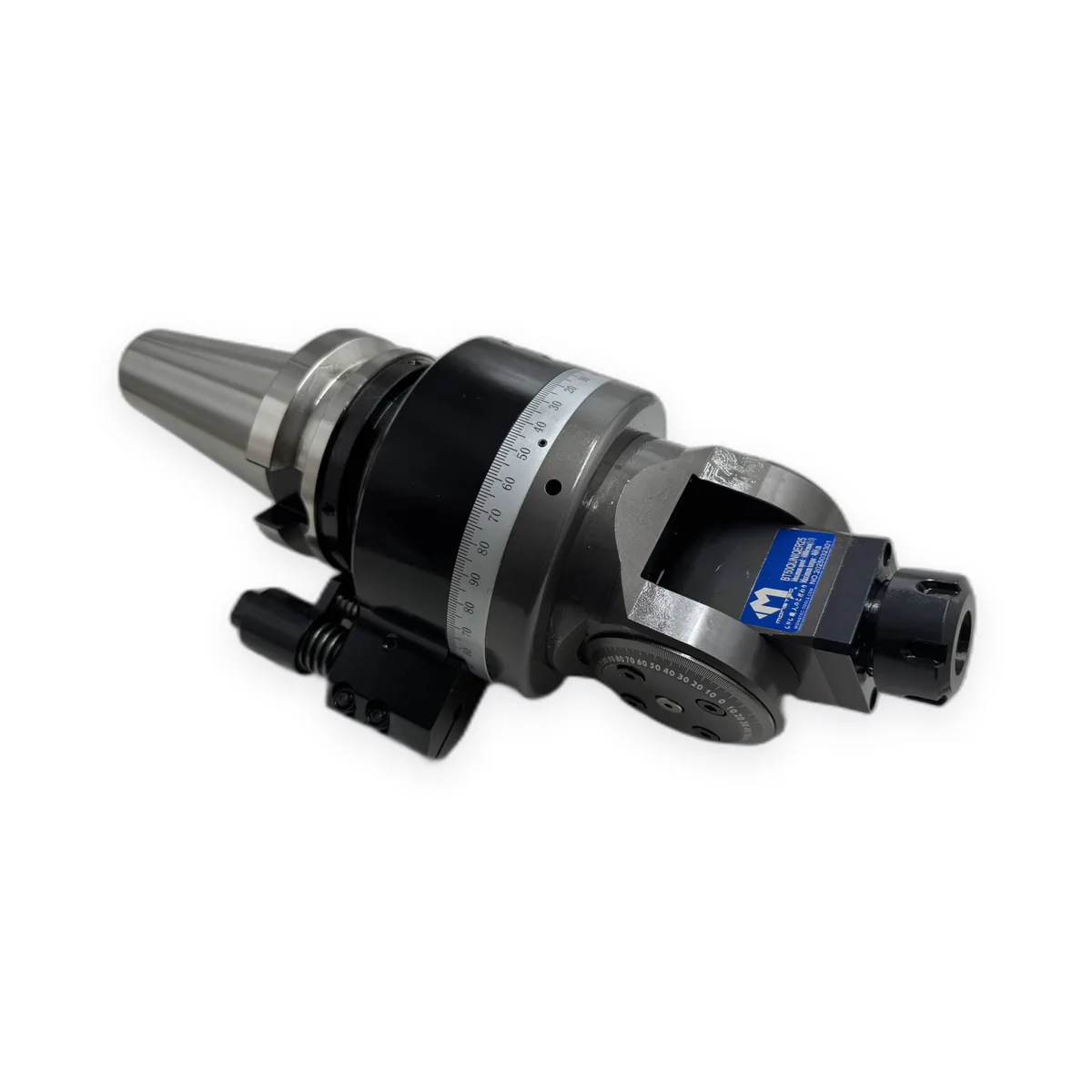

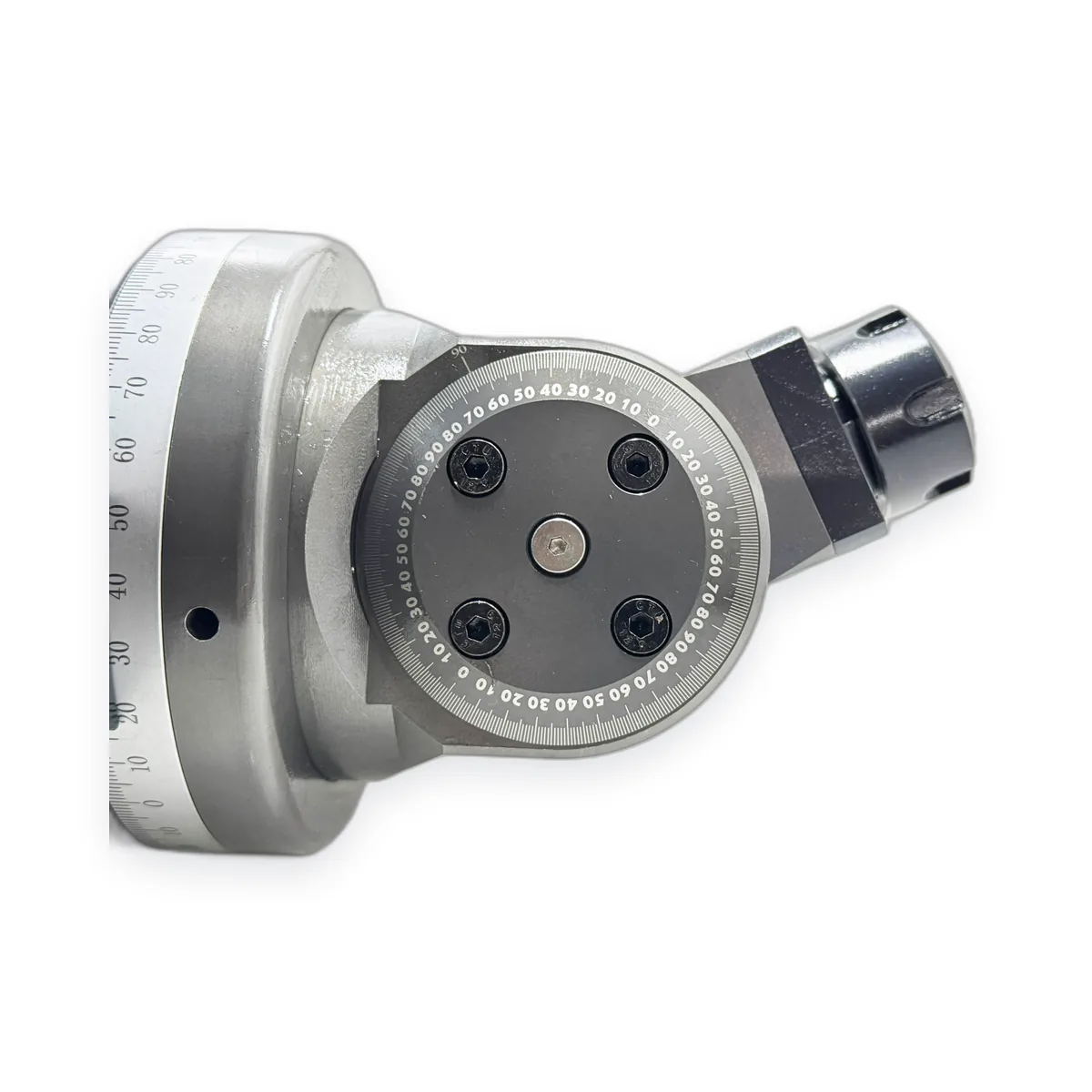

Mongtec adjustable angle head with graduated scale and ER collet outputMongtec angle head with BT taper shank and twin ER collet outputsMongtec angle head with BT shank, right-angle output and collet nutMongtec angle head with BT taper shank, 90-degree machining outputMongtec BMT driven (live) tool holder with ER collet chuck and internal coolant portMongtec VDI driven tool holder for DIN 69880 turret, ER16 colletMongtec BMT45-R C4x60 PSC clamping unit, polygon shank coupling per ISO 26623Mongtec BMT static turret tool holder, OD type, machined and surface-treated body
Compatible Machine Brands
Mazak, Okuma, DMG MORI, DN Solutions, Doosan, Nakamura Tome, Tsugami, Citizen, Star, Hanwha, Index, Traub, Mori Seiki, Hardinge, Haas, Hurco, Fanuc, Brother, Mitsubishi, Makino, Yasda, Kitamura, Matsuura, Mori, Toyoda, and many more.
Technical Catalogues Available for Download
Mongtec Master Catalogue 2026 – Full product line
Mongtec PSC Product Catalog Ver 2026.07 – Polygon shank coupling (ISO 26623), PSC32–PSC100
Mongtec VDI & BMT Driven Tools Ver 2026.07 – VDI driven, BMT tool holders, BMT PSC
Mongtec Static Turret Toolholders Ver 2026.07 – OD, double-OD, ID and face static holders, BMT40–BMT75
Mongtec Swiss Type Toolholders Ver 2026.07 – Sliding-headstock holders with Tsugami / Star / Citizen codes
