Mongtec M2016 — VDI30 axial driven tool holder

M2016 is an axial driven (live) tool holder for the VDI30 turret interface, using ER20 collets, rated to 6,000 rpm and 40 Nm. Mongtec Precision is a Taiwanese brand, designed and engineered in Taichung, Taiwan.

Request a quote for M2016 →

Specification

Article number	M2016
Turret interface	VDI30 — VDI per DIN 69880 (cylindrical shank)
Configuration	Axial Tool Head, Square
Orientation	Axial
Collet system	ER20
Drive ratio	1:1
Max spindle speed	6,000 rpm
Max torque	40 Nm
Brand	Mongtec Precision Inc. — Taiwanese brand, designed and engineered in Taichung, Taiwan

Source: Mongtec VDI & BMT Driven Tools catalogue, Ver 2026.07.

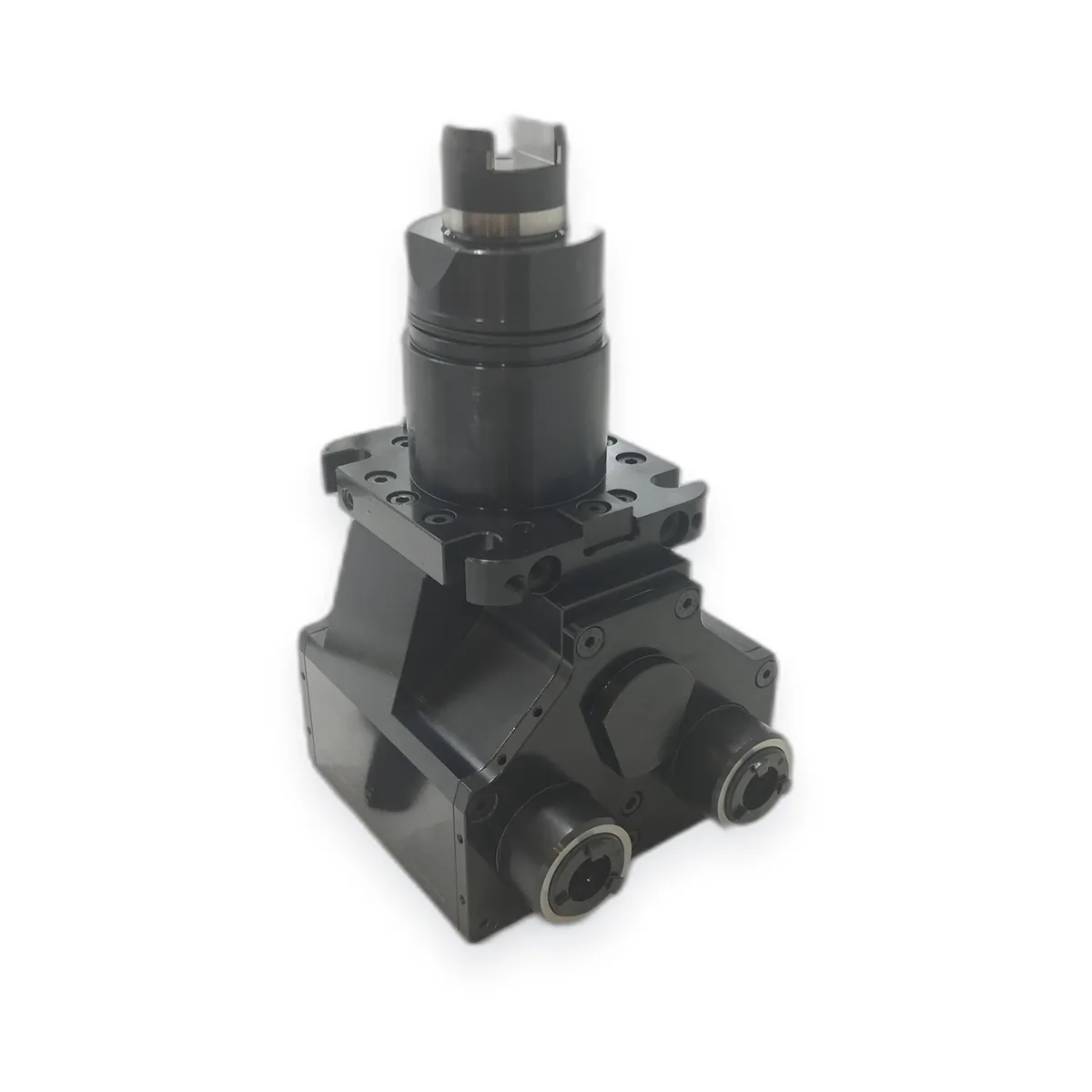

Mongtec driven tool holder showing turret drive shank and output spindle

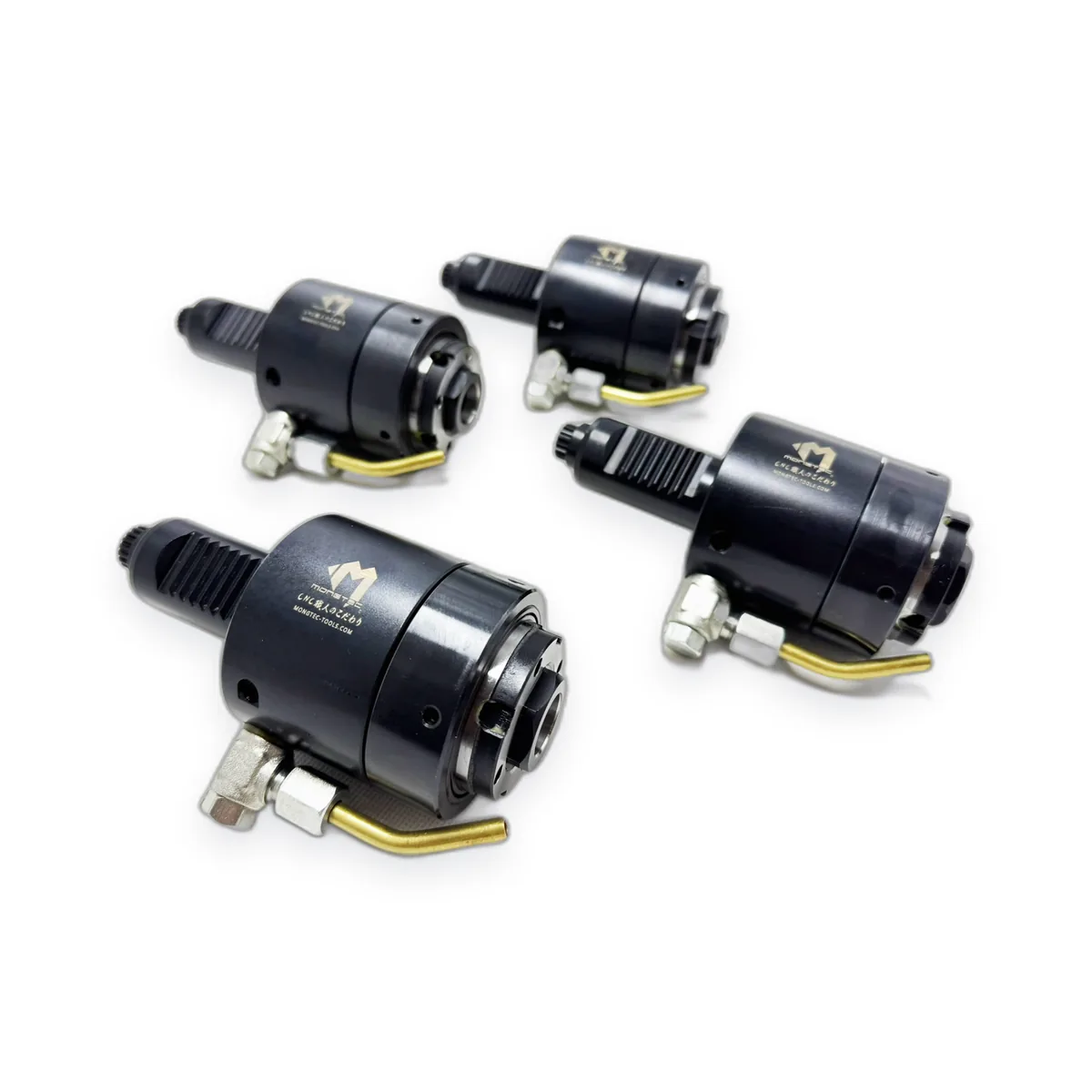

Range of Mongtec compact driven tool holders for CNC lathe turrets

Representative photographs of Mongtec driven tooling in this class — production units, not renderings. Shown as examples of the VDI30 family, not as a photograph of M2016 itself.

What M2016 does on the machine

The driven spindle points along the Z axis, parallel to the lathe spindle. This is the configuration for face drilling, face tapping and end milling on the part face.

Square body — the most rigid of the axial layouts and the usual first choice where turret clearance allows it.

Gear ratio 1:1 — tool spindle speed equals turret drive speed. The direct relationship makes speeds and feeds straightforward to calculate from the machine's live-tool rating.

Do not order against the label alone. “VDI30” fixes the shank per DIN 69880, but pocket depth, clamping system and drive coupling still vary between machine builders. Send Mongtec your machine model and a photograph of the turret face — engineering checks M2016 against the actual turret drawing before anything is quoted. That check is free and takes one email.
