Home / PSC / ISO 26623 / External turning tool bodies / PSC external turning tool bodies — platen clamp (D)PSC external turning tool bodies — platen clamp (D)
Digit 02 of the ordering code is D external turning tool bodies — platen clamp. A clamp plate holds the insert down on the seat, so insert changes are fast and rigidity is high; this is the most common clamping method for external roughing.164 article numbers on this page . All dimensions are the values printed in the catalogue. Mongtec Precision is a Taiwanese brand headquartered in Taichung, Taiwan.
About the blank cells. Cells printed as “— confirmed at RFQ” are figures the catalogue itself prints badly and that we could not verify. On some pages of psc.pdf the rules are set in the wrong place, so digits are cut into the neighbouring column. A figure is restored only where it can be cross-checked against the ordering-code rules and against another page that printed correctly; if any step cannot be proved, the cell is left blank — we do not guess. These figures are supplied with the quotation.

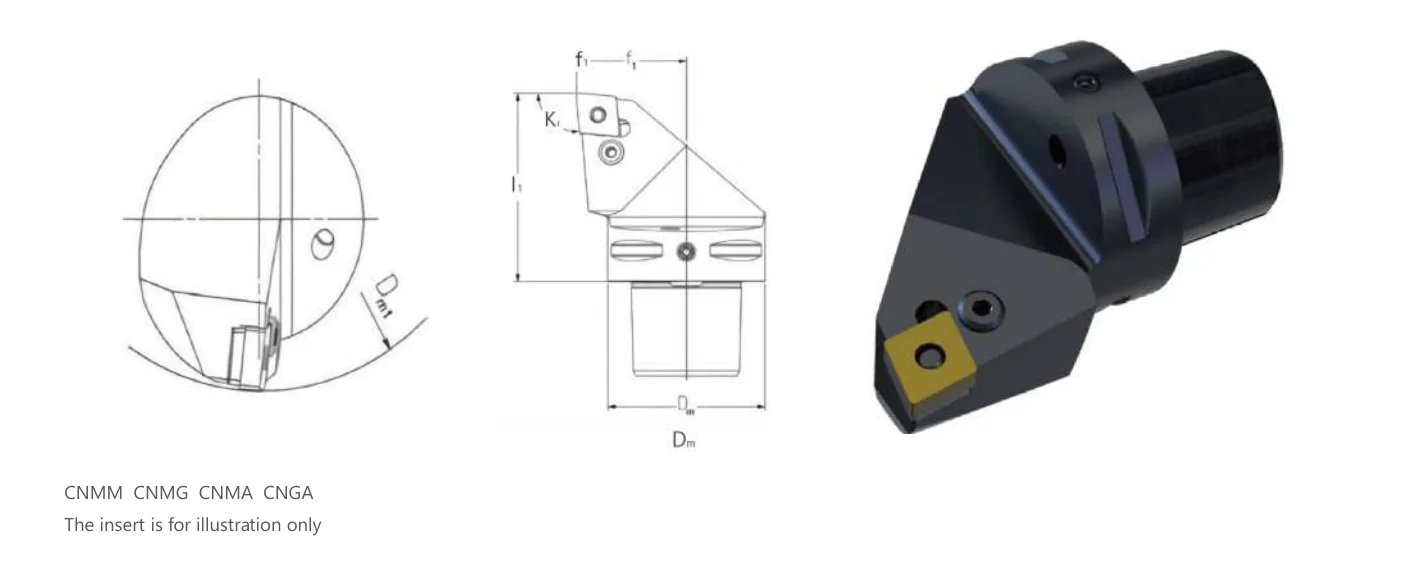

Dimensioned drawing from the Mongtec catalogue. Article number table
DCLNR/L-Kr 95° (catalogue page 6, 18 article numbers)
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC32-DCLNR-22045-1232 60 22 45 -6° -6° 0.2 PSC32-DCLNL-22045-1232 60 22 45 -6° -6° 0.2 PSC40-DCLNR-27050-1240 110 27 50 -6° -6° 0.37 PSC40-DCLNL-27050-1240 110 27 50 -6° -6° 0.37 PSC50-DCLNR-35060-1250 110 35 60 -6° -6° 0.7 PSC50-DCLNL-35060-1250 110 35 60 -6° -6° 0.7 PSC63-DCLNR-45065-1263 110 45 65 -6° -6° 1.2 PSC63-DCLNL-45065-1263 110 45 65 -6° -6° 1.2 PSC80-DCLNR-55080-1280 110 55 80 -6° -6° 2.62 PSC80-DCLNL-55080-1280 110 55 80 -6° -6° 2.62 PSC40-DCLNR-27055-1640 125 27 55 -6° -6° 0.4 PSC40-DCLNL-27055-1640 125 27 55 -6° -6° 0.4 PSC50-DCLNR-35060-1650 125 35 60 -6° -6° 0.7 PSC50-DCLNL-35060-1650 125 35 60 -6° -6° 0.7 PSC63-DCLNR-45065-1663 125 45 65 -6° -6° 1.2 PSC63-DCLNL-45065-1663 125 45 65 -6° -6° 1.2 PSC80-DCLNR-55080-1680 125 55 80 -6° -6° 2.44 PSC80-DCLNL-55080-1680 125 55 80 -6° -6° 2.44
DCLNR/L-Kr 95° (catalogue page 7, 8 article numbers)
The column headings on catalogue page 7 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC50-DCLNR-35060-1950 — confirmed at RFQ 35 60 -6° -6° 0.7 PSC50-DCLNL-35060-1950 — confirmed at RFQ 35 60 -6° -6° 0.7 PSC63-DCLNR-45065-1963 81 45 65 -6° -6° 1.2 PSC63-DCLNL-45065-1963 81 45 65 -6° -6° 1.2 PSC80-DCLNR-55080-1980 100 55 80 -6° -6° 2.44 PSC80-DCLNL-55080-1980 100 55 80 -6° -6° 2.44 PSC80-DCLNR-55080-2580 100 55 80 -6° -6° 2.47 PSC80-DCLNL-55080-2580 100 55 80 -6° -6° 2.47
DCMNN-Kr 50° (catalogue page 8, 5 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC50-DCMNN-00105-1250 0 105 -6° -6° 1.14 — PSC63-DCMNN-00090-1263 0 90 -6° -6° 1.39 CN.. 1204.. PSC63-DCMNN-00115-1263 0 115 -6° -6° 1.84 — PSC63-DCMNN-00090-1663 0 90 -6° -6° 1.32 — PSC80-DCMNN-00150-1680 0 150 -6° -6° 4 —
DCRNR/L-Kr 75° (catalogue page 9, 16 article numbers)
Ordering code Dm Dmin f1 l1 γ λ m (kg)
PSC40-DCRNR-22050-1240 140 22 50 -6° -6° 0.46 PSC40-DCRNL-22050-1240 140 22 50 -6° -6° 0.46 PSC50-DCRNR-27060-1250 165 27 60 -6° -6° 0.75 PSC50-DCRNL-27060-1250 165 27 60 -6° -6° 0.75 PSC63-DCRNR-35065-1263 190 35 65 -6° -6° 1.40 PSC63-DCRNL-35065-1263 190 35 65 -6° -6° 1.40 PSC50-DCRNR-27060-1650 165 27 60 -6° -6° 0.74 PSC50-DCRNL-27060-1650 165 27 60 -6° -6° 0.74 PSC63-DCRNR-35065-1663 190 35 65 -6° -6° 1.34 PSC63-DCRNL-35065-1663 190 35 65 -6° -6° 1.34 PSC80-DCRNR-55080-1680 250 55 80 -6° -6° 2.68 PSC80-DCRNL-55080-1680 250 55 80 -6° -6° 2.68 PSC63-DCRNR-35065-1963 190 35 65 -6° -6° 1.33 PSC63-DCRNL-35065-1963 190 35 65 -6° -6° 1.33 PSC80-DCRNR-55080-1980 250 55 80 -6° -6° 2.68 PSC80-DCRNL-55080-1980 250 55 80 -6° -6° 2.68
DDJNR/L-Kr 93° DDHNR/L-Kr 107.5° DDNNN-Kr 62.5° (catalogue page 11, 16 article numbers)
The column headings on catalogue page 11 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC32-DDJNR-22045-1132 60 22 45 -6° -7° 0.19 PSC32-DDJNL-22045-1132 60 22 45 -6° -7° 0.19 PSC40-DDJNR-27050-1140 60 27 50 -6° -7° 0.34 PSC40-DDJNL-27050-1140 60 27 50 -6° -7° 0.34 PSC50-DDJNR-35060-1150 65 35 60 -6° -7° 0.65 PSC50-DDJNL-35060-1150 65 35 60 -6° -7° 0.65 PSC63-DDJNR-45065-1163 81 45 65 -6° -7° 1.08 PSC63-DDJNL-45065-1163 81 45 65 -6° -7° 1.08 PSC40-DDJNR-27055-1540 110 27 55 -6° -7° 0.36 PSC40-DDJNL-27055-1540 110 27 55 -6° -7° 0.36 PSC50-DDJNR-35060-1550 110 35 60 -6° -7° 0.36 PSC50-DDJNL-35060-1550 110 35 60 -6° -7° 0.36 PSC63-DDJNR-45065-1563 110 45 65 -6° -7° 1.05 PSC63-DDJNL-45065-1563 110 45 65 -6° -7° 1.05 PSC80-DDJNR-55080-1580 110 55 80 -6° -7° 2.16 PSC80-DDJNL-55080-1580 110 55 80 -6° -7° 2.16
DDJNR/L-Kr 93° DDHNR/L-Kr 107.5° DDNNN-Kr 62.5° (catalogue page 12, 14 article numbers)
The column headings on catalogue page 12 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC40-DDHNR-27055-1540 110 27 55 -6° -7° 0.38 PSC40-DDHNL-27055-1540 110 27 55 -6° -7° 0.38 PSC50-DDHNR-35060-1550 110 35 60 -6° -7° 0.66 PSC50-DDHNL-35060-1550 110 35 60 -6° -7° 0.66 PSC63-DDHNR-45065-1563 110 45 65 -6° -7° 1.15 PSC63-DDHNL-45065-1563 110 45 65 -6° -7° 1.15 PSC80-DDHNR-55080-1580 110 55 80 -6° -7° 2.36 PSC80-DDHNL-55080-1580 110 55 80 -6° -7° 2.36 PSC40-DDNNN-00055-1540 — confirmed at RFQ 0.5 55 -5° -9° 0.38 PSC50-DDNNN-00060-1550 — confirmed at RFQ 0.5 60 -5° -9° 0.62 PSC63-DDNNN-00065-1563 — confirmed at RFQ 0.5 65 -5° -9° 1.06 PSC80-DDNNN-00080-1580 — confirmed at RFQ 0.5 80 -5° -9° 2.1 PSC80-DDUNR-55080-1580 80 55 80 -6° -7° 2.7 PSC80-DDUNL-55080-1580 80 55 80 -6° -7° 2.7
DDMNL-Kr 93° (catalogue page 13, 4 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC50-DDMNL-00115-1550 1 115 -5° -6° 1.24 PSC63-DDMNL-00130-1563 1 130 -5° -6° 2.05 PSC63-DDMNL-33120-1563 33 120 -5° -6° 2.12 PSC80-DDMNL-00160-1580 1 160 -5° -6° 4.13
DSKNR/L-Kr 75° DSDNN-Kr 45° DSSNR/L-Kr 45° (catalogue page 14, 18 article numbers)
The column headings on catalogue page 14 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 f1s l1s γ m (kg)
PSC32-DSKNR-22040-1232 60 22 40 — confirmed at RFQ — confirmed at RFQ -6°- 0.2 PSC32-DSKNL-22040-1232 60 22 40 — confirmed at RFQ — confirmed at RFQ -6°- 0.2 PSC40-DSKNR-27050-1240 110 27 50 — confirmed at RFQ — confirmed at RFQ -6°- 0.35 PSC40-DSKNL-27050-1240 110 27 50 — confirmed at RFQ — confirmed at RFQ -6°- 0.35 PSC50-DSKNR-35060-1250 110 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.75 PSC50-DSKNL-35060-1250 110 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.75 PSC63-DSKNR-45065-1263 110 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.24 PSC63-DSKNL-45065-1263 110 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.24 PSC50-DSKNR-35060-1550 125 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.85 PSC50-DSKNL-35060-1550 125 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.85 PSC63-DSKNR-45065-1563 125 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.38 PSC63-DSKNL-45065-1563 125 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.38 PSC50-DSKNR-35060-1950 125 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.76 PSC50-DSKNL-35060-1950 125 35 60 — confirmed at RFQ — confirmed at RFQ -6°- 0.76 PSC63-DSKNR-45065-1963 125 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.27 PSC63-DSKNL-45065-1963 125 45 65 — confirmed at RFQ — confirmed at RFQ -6°- 1.27 PSC80-DSKNR-55080-1980 125 55 80 — confirmed at RFQ — confirmed at RFQ -6°- 2.54 PSC80-DSKNL-55080-1980 125 55 80 — confirmed at RFQ — confirmed at RFQ -6°- 2.54
DSKNR/L-Kr 75° DSDNN-Kr 45° DSSNR/L-Kr 45° (catalogue page 15, 32 article numbers)
The column headings on catalogue page 15 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 f1s l1s γ λ m (kg)
PSC32-DSRNR-19048-1232 124 19 48 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.26 PSC32-DSRNL-19048-1232 124 19 48 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.26 PSC40-DSRNR-22050-1240 140 22 50 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.4 PSC40-DSRNL-22050-1240 140 22 50 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.4 PSC50-DSRNR-27060-1250 165 27 60 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.72 PSC50-DSRNL-27060-1250 165 27 60 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.72 PSC63-DSRNR-35065-1263 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.24 PSC63-DSRNL-35065-1263 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.24 PSC50-DSRNR-27060-1550 165 27 60 — confirmed at RFQ — confirmed at RFQ 6° -6° 0.76 PSC50-DSRNL-27060-1550 165 27 60 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.76 PSC63-DSRNR-35065-1563 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.31 PSC63-DSRNL-35065-1563 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.31 PSC63-DSRNR-35065-1963 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.3 PSC63-DSRNL-35065-1963 190 35 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.3 PSC80-DSRNR-45080-1980 250 45 80 — confirmed at RFQ — confirmed at RFQ -6° -6° 2.54 PSC80-DSRNL-45080-1980 250 45 80 — confirmed at RFQ — confirmed at RFQ -6° -6° 2.54 PSC32-DSDNN-00048-1232 -0 .3 48 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.19 PSC40-DSDNN-00050-1240 -0 .3 50 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.32 PSC50-DSDNN-00060-1250 -0 .3 60 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.61 PSC63-DSDNN-00065-1263 -0 .3 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.07 PSC50-DSDNN-00060-1550 -0 .3 60 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.78 PSC63-DSDNN-00065-1563 -0 .5 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.2 PSC50-DSDNN-00065-1950 -0 .5 65 — confirmed at RFQ — confirmed at RFQ -6° -6° 0.76 PSC63-DSDNN-00070-1963 -0 .5 70 — confirmed at RFQ — confirmed at RFQ -6° -6° 1.24 PSC32-DSSNR-22040-1232 60 22 40 13.7 48.3 -8°0 — .19 PSC32-DSSNL-22040-1232 60 22 40 13.7 48.3 -8°0 — .19 PSC40-DSSNR-27042-1240 110 27 42 18.7 50.3 -8°0 — 0.31 PSC40-DSSNL-27042-1240 110 27 42 18.7 50.3 -8°0 — 0.31 PSC50-DSSNR-35052-1250 110 35 52 26.7 60.3 -8°0 — .6 PSC50-DSSNL-35052-1250 110 35 52 26.7 60.3 -8°0 — .6 PSC63-DSSNR-45056-1263 110 45 56 36.7 64.3 -8°0 — .99 PSC63-DSSNL-45056-1263 110 45 56 36.7 64.3 -8°0 — .99
DSKNR/L-Kr 75° DSDNN-Kr 45° DSSNR/L-Kr 45° (catalogue page 16, 4 article numbers)
The column headings on catalogue page 16 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 f1s l1s γ m (kg)
PSC63-DSSNR-45054-1563 — confirmed at RFQ 45 54 — confirmed at RFQ — confirmed at RFQ -8°0 .12 PSC63-DSSNL-45054-1563 — confirmed at RFQ 45 54 — confirmed at RFQ — confirmed at RFQ -8°0 .12 PSC63-DSSNR-45052-1963 — confirmed at RFQ 45 52 — confirmed at RFQ — confirmed at RFQ -8°0 .15 PSC63-DSSNL-45052-1963 — confirmed at RFQ 45 52 — confirmed at RFQ — confirmed at RFQ -8°0 .15
DWLNR/L-Kr 95° (catalogue page 17, 5 article numbers)
The column headings on catalogue page 17 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ m (kg)
PSC32-DWLNR-22040-0632 60 22 40 -6°- 0.18 PSC32-DWLNL-22040-0632 60 22 40 -6°- 0.18 PSC40-DWLNL-27050-0640 60 27 50 -6°- 0.35 PSC50-DWLNL-35060-0650 65 35 60 -6°- 0.67 PSC63-DWLNL-45065-0663 81 45 65 -6°- 1.21
DWLNR/L-Kr 95° (catalogue page 18, 2 article numbers)
The column headings on catalogue page 18 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC40-DWLNR-27050-0840 110 27 50 -6° -6° 0.35 PSC80-DWLNL-55080-0880 110 55 80 -6° -6° 2.44
DVJNR/L-Kr 93° DVVNN-Kr 72.5° (catalogue page 19, 2 article numbers)
The column headings on catalogue page 19 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ m (kg)
PSC40-DVJNR-27062-1640 — confirmed at RFQ 27 62 °- 0.4 PSC80-DVVNN-00080-1680 — confirmed at RFQ — confirmed at RFQ 80 °- 2
DTJNR/L-Kr 93° (catalogue page 20, 14 article numbers)
The column headings on catalogue page 20 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code DmD m1 f1 l1 γ λ m (kg)
PSC32-DTJNR-22040-1632 60 22 40 -6° -6° 0.2KG PSC32-DTJNL-22040-1632 60 22 40 -6° -6° 0.2KG PSC40-DTJNR-27050-1640 110 27 50 -6° -6° 0.43 PSC40-DTJNL-27050-1640 110 27 50 -6° -6° 0.43 PSC50-DTJNR-35060-1650 110 35 60 -6° -6° 0.78 PSC50-DTJNL-35060-1650 110 35 60 -6° -6° 0.78 PSC63-DTJNR-45065-1663 110 45 65 -6° -6° 1.34 PSC63-DTJNL-45065-1663 110 45 65 -6° -6° 1.34 PSC40-DTJNR-27050-2240 110 27 50 -6° -6° 0.5 PSC40-DTJNL-27050-2240 110 27 50 -6° -6° 0.5 PSC50-DTJNR-35060-2250 110 35 60 -6° -6° 0.98 PSC50-DTJNL-35060-2250 110 35 60 -6° -6° 0.98 PSC63-DTJNR-45065-2263 110 45 65 -6° -6° 1.4 PSC63-DTJNL-45065-2263 110 45 65 -6° -6° 1.4
Article number table (catalogue page 22, 6 article numbers)
Ordering code Dm Dmin f1 l1 γ λ m (kg)
PSC40-DRSNR-27050-1240 110 27 50 -6° -6° 0.38 PSC40-DRSNL-27050-1240 110 27 50 -6° -6° 0.38 PSC50-DRSNR-35060-1250 110 35 60 -6° -6° 0.70 PSC50-DRSNL-35060-1250 110 35 60 -6° -6° 0.70 PSC63-DRSNR-45065-1263 110 45 65 -6° -6° 1.11 PSC63-DRSNL-45065-1263 110 45 65 -6° -6° 1.11
Send your machine and application details and we will quote →
