Mongtec M2007 – BMT45 Radial Driven Tool Holder, ER25

M2007 is a radial driven (live) tool holder for the BMT45 turret interface, using ER25 collets, rated to 8,000 rpm and 40 Nm. Mongtec Precision is a Taiwanese brand, designed and engineered in Taichung, Taiwan.

Specification

Article number	M2007
Turret interface	BMT45 — BMT (Base Mount Turret, flange mount)
Configuration	Radial Tool Holders -b45, External Coolant
Orientation	Radial
Collet system	ER25
Drive ratio	1:1
Max spindle speed	8,000 rpm
Max torque	40 Nm
Brand	Mongtec Precision Inc. — Taiwanese brand, designed and engineered in Taichung, Taiwan

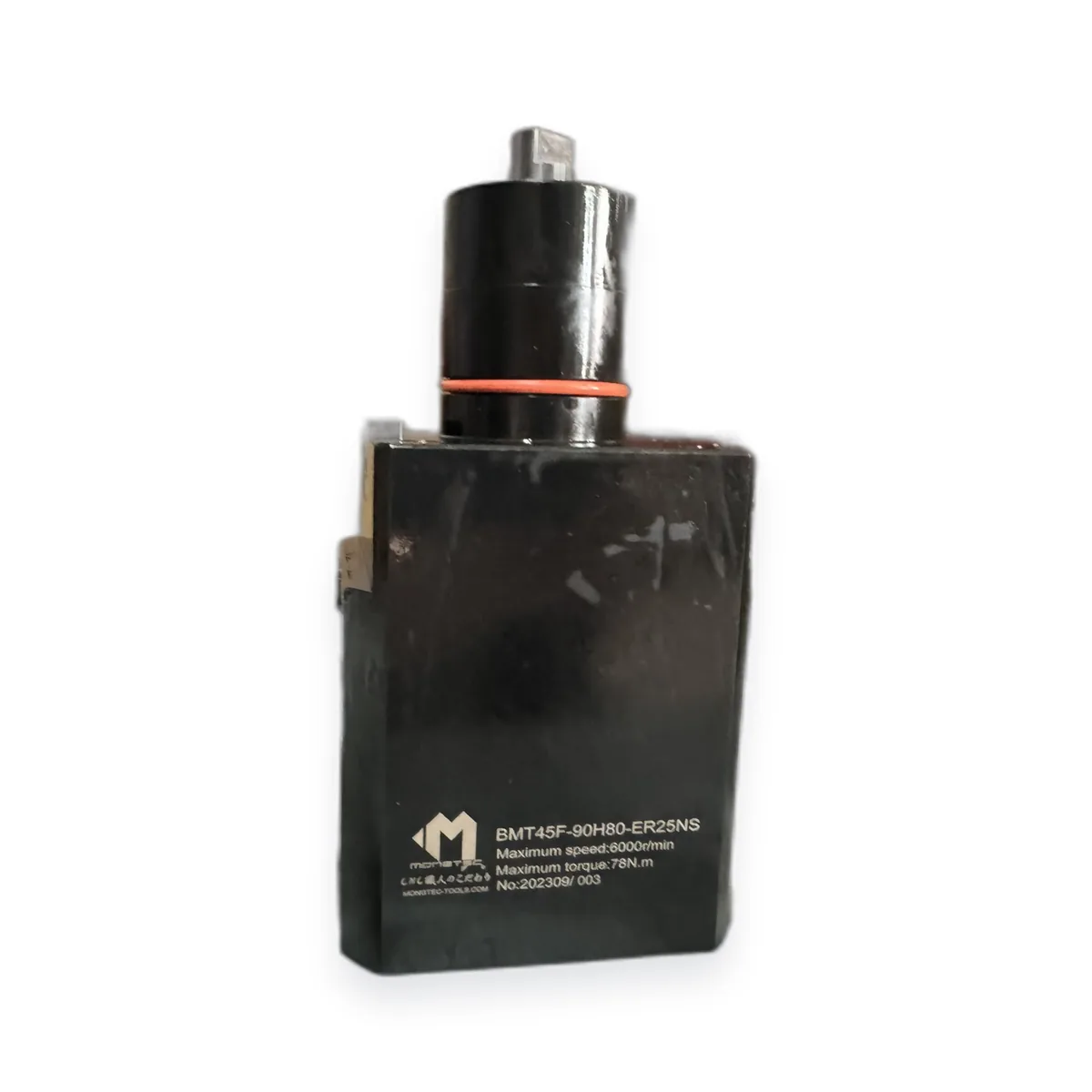

Mongtec BMT driven tool holder with ER25 collet chuck

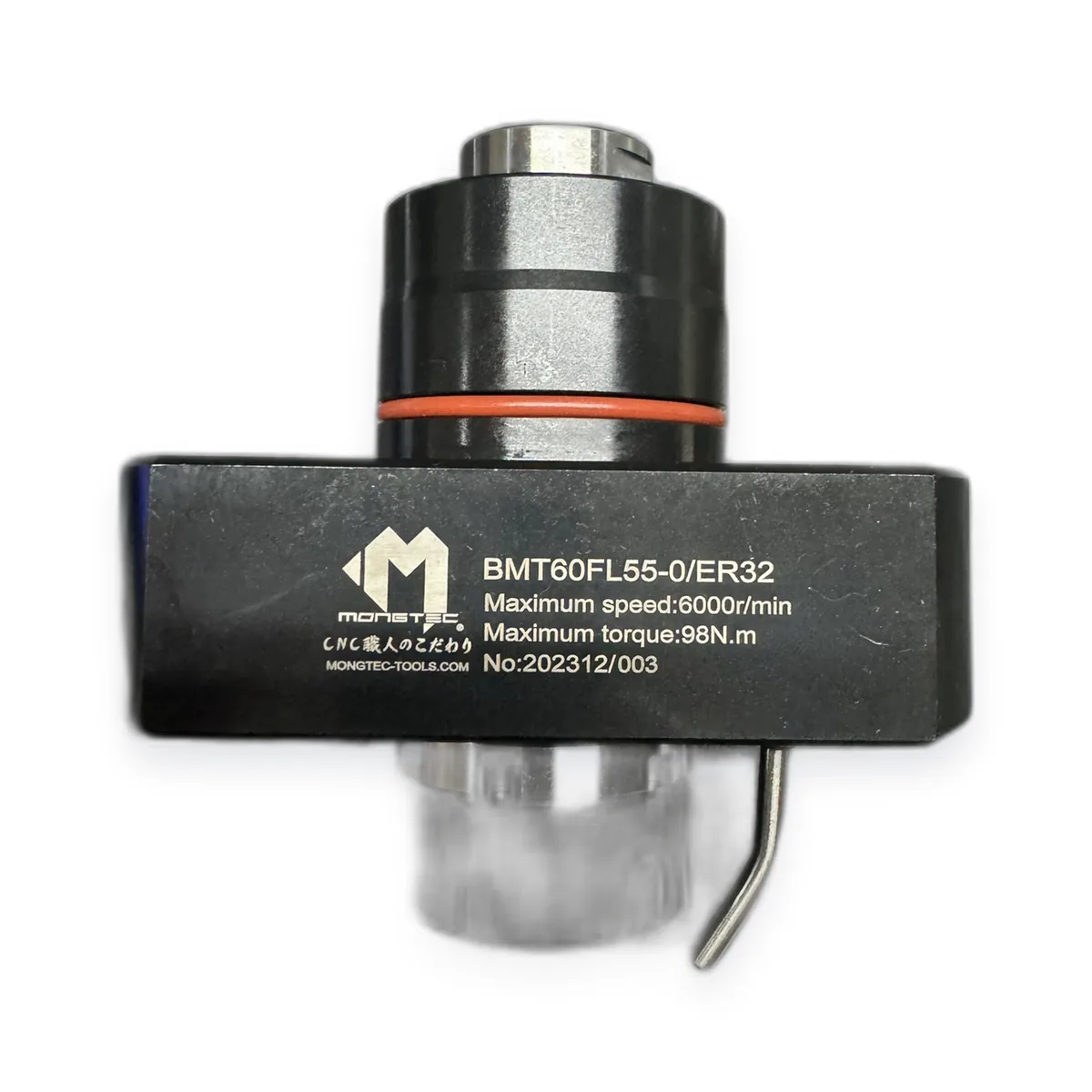

Mongtec BMT60 driven tool holder, ER32 collet, engraved speed and torque rating

Representative photographs of Mongtec driven tooling in this class — production units, not renderings. Shown as examples of the BMT45 family, not as a photograph of M2007 itself.

What M2007 does on the machine

The driven spindle points at 90° to the lathe spindle, along the X axis. This is the configuration for cross drilling, cross tapping and slotting on the outside diameter.

External coolant. Coolant is delivered to the cut from outside nozzles. Suitable for general drilling, tapping and milling where chip evacuation is not the limiting factor.

Gear ratio 1:1 — tool spindle speed equals turret drive speed. The direct relationship makes speeds and feeds straightforward to calculate from the machine's live-tool rating.

Do not order against the label alone. “BMT45” identifies the nominal turret class, but BMT is an industry de-facto standard — it is not published by ISO or DIN. Bolt circle, key position and drive coupling can differ between machine builders at the same nominal size. Send Mongtec your machine model and a photograph of the turret face — engineering checks M2007 against the actual turret drawing before anything is quoted. That check is free and takes one email.

Machines with a BMT45 turret

Mongtec publishes tooling pages for these machines with a declared BMT45 turret. Confirming your model here does not confirm M2007 as the article number — that still comes from engineering.

Other BMT45 holders in the same configuration

Related BMT45 configurations

Frequently asked

What machines does the Mongtec M2007 fit?

M2007 is built for the BMT45 turret interface. Because BMT is an industry de-facto standard rather than an ISO or DIN published standard, bolt circle, key position and drive coupling can differ between machine builders even at the same nominal size. Send Mongtec your machine model and a photo of the turret face and engineering confirms the fit before anything is quoted.

What speed and torque can M2007 run?

M2007 is rated to 8,000 rpm with 40 Nm of torque at a 1:1 drive ratio. The usable figure is whichever is lower: this rating or your machine's live-tool drive rating.

What collet does M2007 take?

M2007 takes ER25 collets. Collets and nuts are supplied separately; specify the shank diameters you intend to run and Mongtec quotes the collet set with the holder.

Is a dimensioned drawing available for M2007?

Yes. Mongtec supplies the full dimensioned drawing for M2007 by email once an enquiry is open, so the drawing is matched to your actual machine and turret configuration rather than a generic sheet.

Get M2007 quoted

Send the machine model, the turret station you want to use and the tools you intend to run. Anything you do not know, Mongtec works out from the machine model — an incomplete enquiry is still worth sending. Dimensioned drawings for M2007 are supplied by email once the enquiry is open.
