Mongtec M2136 — VDI50 axial driven tool holder

M2136 is an axial driven (live) tool holder for the VDI50 turret interface, using ER40 collets, rated to 4,000 rpm and 100 Nm. Mongtec Precision is a Taiwanese brand, designed and engineered in Taichung, Taiwan.

Request a quote for M2136 →

Specification

Article number	M2136
Turret interface	VDI50 — VDI per DIN 69880 (cylindrical shank)
Configuration	Axial Tool Head, Square
Orientation	Axial
Collet system	ER40
Drive ratio	1:1
Max spindle speed	4,000 rpm
Max torque	100 Nm
Brand	Mongtec Precision Inc. — Taiwanese brand, designed and engineered in Taichung, Taiwan

Source: Mongtec VDI & BMT Driven Tools catalogue, Ver 2026.07.

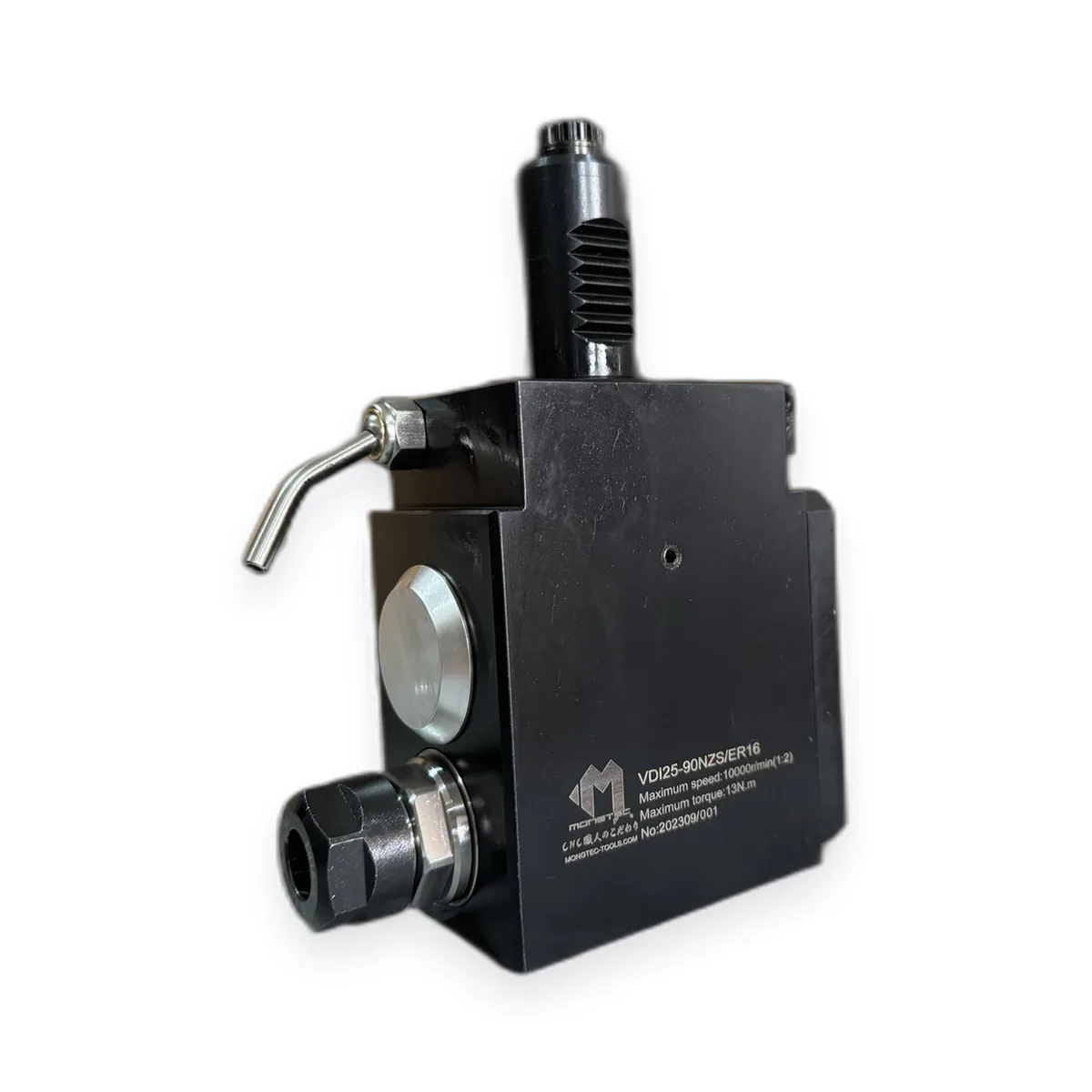

Mongtec VDI driven tool holder for DIN 69880 turret, ER16 collet

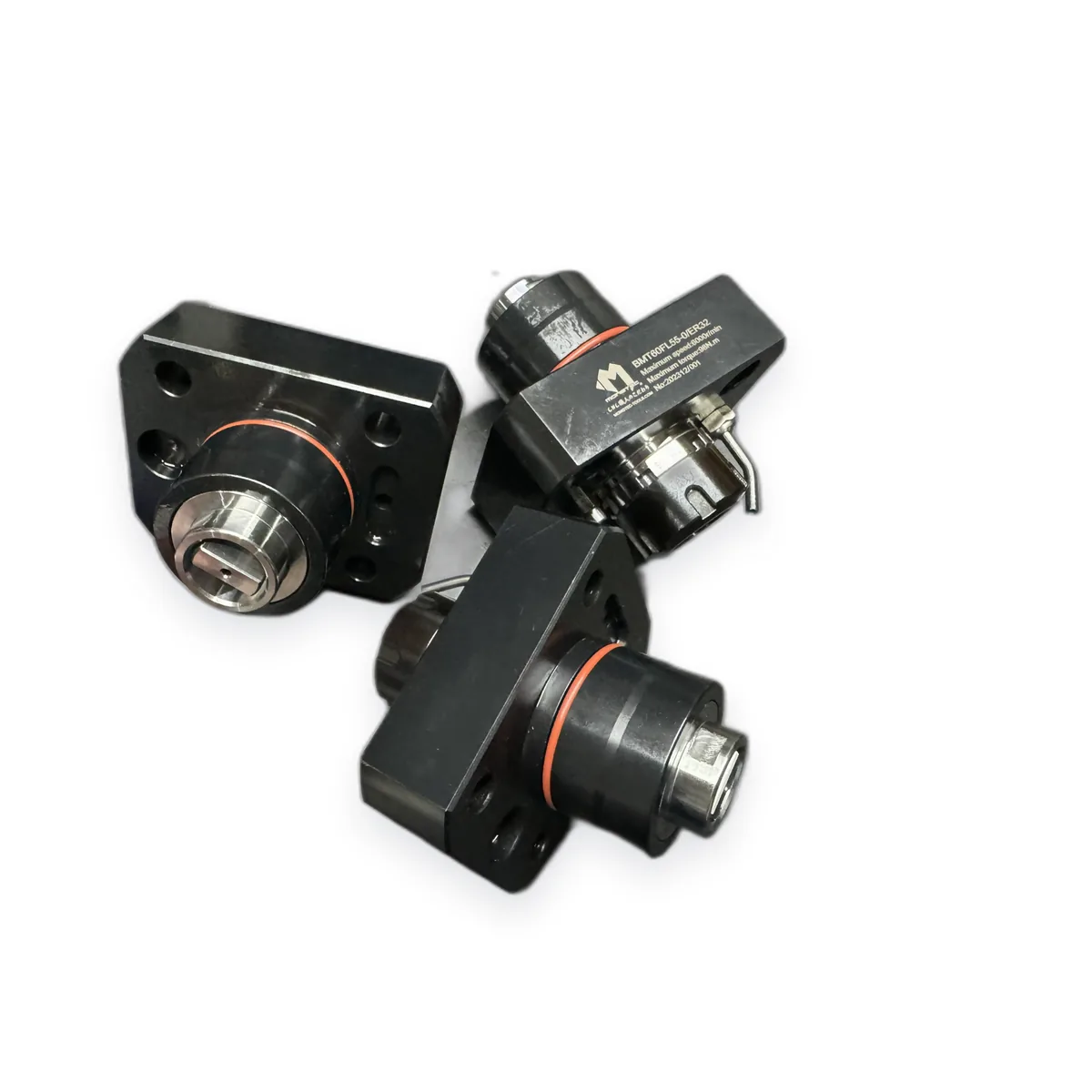

Group of Mongtec BMT driven tool holders showing drive coupling and collet ends

Representative photographs of Mongtec driven tooling in this class — production units, not renderings. Shown as examples of the VDI50 family, not as a photograph of M2136 itself.

What M2136 does on the machine

The driven spindle points along the Z axis, parallel to the lathe spindle. This is the configuration for face drilling, face tapping and end milling on the part face.

Square body — the most rigid of the axial layouts and the usual first choice where turret clearance allows it.

Gear ratio 1:1 — tool spindle speed equals turret drive speed. The direct relationship makes speeds and feeds straightforward to calculate from the machine's live-tool rating.

Do not order against the label alone. “VDI50” fixes the shank per DIN 69880, but pocket depth, clamping system and drive coupling still vary between machine builders. Send Mongtec your machine model and a photograph of the turret face — engineering checks M2136 against the actual turret drawing before anything is quoted. That check is free and takes one email.
