Adaptors between PSC and other interfaces: ER collets, shell mill arbors, and SK / HSK / BT spindle tapers.Note that the length column maps differently — for ER and arbor types the coded length maps to L2, for SK to L1, and for HSK and BT to L2. This was verified table by table rather than assumed to be uniform. 104 article numbers on this page. All dimensions are the values printed in the catalogue. Mongtec Precision is a Taiwanese brand headquartered in Taichung, Taiwan.
About the blank cells.Cells printed as “— confirmed at RFQ” are figures the catalogue itself prints badly and that we could not verify. On some pages of psc.pdf the rules are set in the wrong place, so digits are cut into the neighbouring column. A figure is restored only where it can be cross-checked against the ordering-code rules and against another page that printed correctly; if any step cannot be proved, the cell is left blank — we do not guess. These figures are supplied with the quotation.

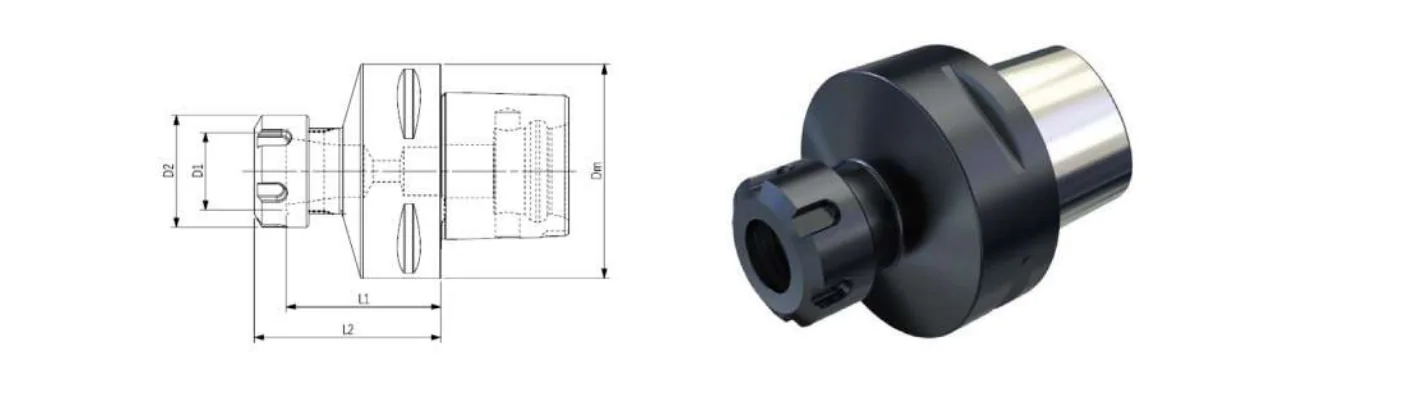

Dimensioned drawing from the Mongtec catalogue.
Article number table
PSC with Type ER (catalogue page 118, 20 article numbers)
Ordering code
Dm
D1
L1
L2
Locking nut
m (kg)
PSC32-ER16-045
32
32
34.4
45
ER16_M_SP1
0.2
PSC32-ER20-045
32
35
33.5
45
ER20_M_SP1
0.22
PSC40-ER20-052
40
35
40.5
52
ER20_M_SP1
0.37
PSC40-ER25-052
40
42
40
52
ER25_M_SP1
0.42
PSC40-ER32-054
40
50
41
54
ER32_M_SP1
0.46
PSC50-ER20-055
50
35
43.5
55
ER20_M_SP1
0.62
PSC50-ER25-055
50
42
43
55
ER25_M_SP1
0.63
PSC50-ER32-057
50
50
44
57
ER32_M_SP1
0.68
PSC50-ER32-100
50
50
87
100
ER32_M_SP1
1.28
PSC50-ER40-060
50
63
45
60
ER40_M_SP1
0.81
PSC63-ER25-060
63
42
48
60
ER25_M_SP1
1.04
PSC63-ER25-100
63
42
88
100
ER25_M_SP1
1.44
PSC63-ER32-060
63
50
47
60
ER32_M_SP1
1.06
PSC63-ER32-100
63
50
87
100
ER32_M_SP1
1.6
PSC63-ER40-065
63
63
50
65
ER40_M_SP1
1.22
PSC63-ER40-130
63
63
115
130
ER40_M_SP1
2.77
PSC80-ER20-065
80
35
53.5
65
ER20_M_SP1
2.02
PSC80-ER25-070
80
42
58
70
ER25_M_SP1
2.1
PSC80-ER32-070
80
50
57
70
ER32_M_SP1
2.13
PSC80-ER40-070
80
63
55
70
ER40_M_SP1
2.19
PSC with Type Arbor Adaptor (catalogue page 119, 20 article numbers)
Ordering code
Dm
D1
D2
L1
L2
m (kg)
PSC32-A16A-030M
32
16
32
15
30
0.25
PSC40-A16A-032M
40
16
32
10
32
0.38
PSC40-A16A-055M
40
16
32
33
55
0.4
PSC40-A22A-025M
40
22
40
— confirmed at RFQ
25
0.4
PSC40-A22A-055M
40
22
40
25
55
0.6
PSC50-A16A-035M
50
16
32
10
35
0.6
PSC50-A16A-070M
50
16
32
45
70
0.7
PSC50-A22A-025M
50
22
40
— confirmed at RFQ
25
0.62
PSC50-A22A-070M
50
22
40
47
70
0.9
PSC50-A27A-025M
50
27
50
— confirmed at RFQ
25
0.68
PSC50-A32A-040M
50
32
63
20
40
1.14
PSC63-A16A-040M
63
16
32
10
40
1
PSC63-A22A-025M
63
22
40
— confirmed at RFQ
25
0.96
PSC63-A22A-080M
63
22
40
40
80
1.4
PSC63-A27A-025M
63
27
50
— confirmed at RFQ
25
1.01
PSC63-A27A-080M
63
27
50
55
80
1.6
PSC63-A32A-025M
63
32
63
— confirmed at RFQ
25
1.09
PSC63-A40A-045M
63
40
70
20
45
1.75
PSC63-A40C-050M
63
40
88
28
50
2.4
PSC80-A16A-050M
80
16
32
10
50
2.1
PSC with Type Arbor Adaptor (continued) (catalogue page 120, 12 article numbers)
Ordering code
Dm
D1
D2
L1
L2
m (kg)
PSC80-A22A-030M
80
22
80
— confirmed at RFQ
30
1.86
PSC80-A22A-090M
80
22
40
45
90
2.4
PSC80-A27A-030M
80
27
50
— confirmed at RFQ
30
1.91
PSC80-A27A-090M
80
27
50
50
90
2.7
PSC80-A32A-030M
80
32
80
— confirmed at RFQ
30
2.02
PSC80-A40A-030M
80
40
80
— confirmed at RFQ
30
2
PSC80-A40C-060M
80
40
88
30
60
3.47
PSC80-A60C-080M
80
60
130
50
80
7.78
PSC100-A27A-075M
100
27
60
29
75
4.52
PSC100-A32A-075M
100
32
78
33
75
5.04
PSC100-A40C-040M
100
40
100
— confirmed at RFQ
40
3.95
PSC100-A60C-075M
100
60
130
— confirmed at RFQ
75
8.5
SK with Type PSC Adaptor (catalogue page 121, 18 article numbers)
Ordering code
Dm
D1
L1
L2
m (kg)
SK40-PSC32-030M
32
63.5
30
10.9
0.87
SK40-PSC32-060M
32
63.5
60
40.9
1.02
SK40-PSC40-030M
40
63.5
30
10.9
0.86
SK40-PSC40-060M
40
63.5
60
40.9
1.12
SK40-PSC50-040M
50
63.5
40
20.9
0.96
SK40-PSC50-080M
50
63.5
80
60.9
1.52
SK40-PSC63-085M
63
63.5
85
65.9
1.84
SK50-PSC32-030M
32
97.5
30
10.9
2.73
SK50-PSC32-060M
32
97.5
60
40.9
2.86
SK50-PSC40-030M
40
97.5
— confirmed at RFQ
10.9
2.74
SK50-PSC40-060M
40
97.5
60
40.9
2.86
SK50-PSC50-030M
50
97.5
30
10.9
2.7
SK50-PSC50-070M
50
97.5
70
50.9
3.21
SK50-PSC63-030M
63
97.5
30
10.9
2.62
SK50-PSC63-080M
63
97.5
80
60.9
3.71
SK50-PSC80-070M
80
97.5
70
50.9
3.83
SK50-PSC80-120M
80
97.5
120
100.9
5.69
SK50-PSC100-140M
100
100
140
— confirmed at RFQ
7.66
HSK with Type PSC Adaptor (catalogue page 123, 14 article numbers)
Ordering code
D1
L2
L1
Dm
m (kg)
HSK50A-PSC32-075M
32
75
49
50
0.67
HSK50A-PSC40-080M
40
80
54
50
0.85
HSK63A-PSC32-075M
32
75
49
63
0.97
HSK63A-PSC40-080M
40
80
54
63
1.14
HSK63A-PSC50-090M
50
90
64
63
1.47
HSK80A-PSC40-090M
40
90
64
80
1.69
HSK80A-PSC50-095M
50
95
69
80
2.02
HSK80A-PSC63-110M
63
110
84
80
2.79
HSK100A-PSC32-080M
32
80
43
100
2.42
HSK100A-PSC40-090M
40
90
61
100
2.63
HSK100A-PSC50-100M
50
100
71
100
3.02
HSK100A-PSC63-110M
63
110
81
100
3.7
HSK100A-PSC80-120M
80
120
91
100
4.87
HSK100A-PSC100-155M
100
155
— confirmed at RFQ
100
7.64
BT with Type PSC Adaptor (catalogue page 124, 20 article numbers)
