Digit 02 of the ordering code is P external turning tool bodies — hook (lever) clamp. The insert is hooked from below and drawn inward, leaving the seating face completely flat for clean chip flow; suited to continuous cutting and finish turning.111 article numbers on this page . All dimensions are the values printed in the catalogue. Mongtec Precision is a Taiwanese brand headquartered in Taichung, Taiwan.
About the blank cells. Cells printed as “— confirmed at RFQ” are figures the catalogue itself prints badly and that we could not verify. On some pages of psc.pdf the rules are set in the wrong place, so digits are cut into the neighbouring column. A figure is restored only where it can be cross-checked against the ordering-code rules and against another page that printed correctly; if any step cannot be proved, the cell is left blank — we do not guess. These figures are supplied with the quotation.

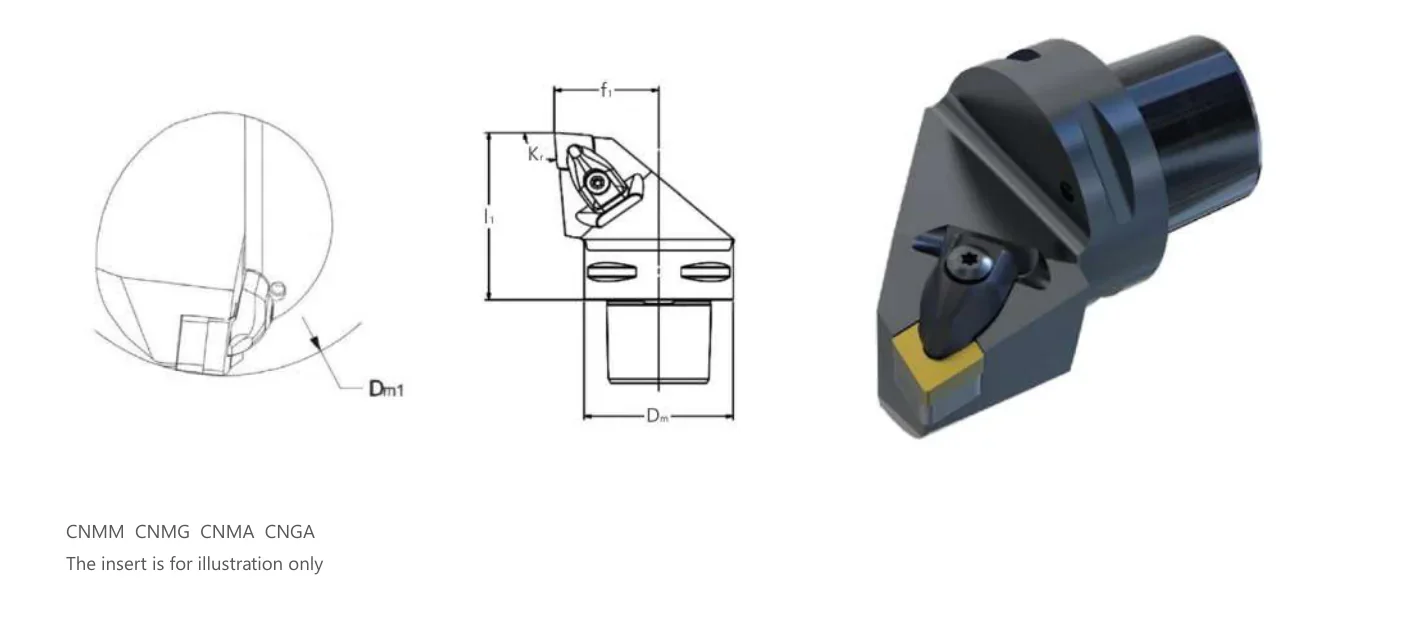

Dimensioned drawing from the Mongtec catalogue. Article number table
PCLNR/L-Kr 95° (catalogue page 23, 18 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC40-PCLNR-27050-1240 27 50 -6° -6° 0.36 PSC40-PCLNL-27050-1240 27 50 -6° -6° 0.36 PSC50-PCLNR-35060-1250 35 60 -6° -6° 0.68 PSC50-PCLNL-35060-1250 35 60 -6° -6° 0.68 PSC63-PCLNR-45165-1263 45 165 -6° -6° 3.7 PSC63-PCLNL-45165-1263 45 165 -6° -6° 3.7 PSC63-PCLNR-45065-1263 45 65 -6° -6° 1.19 PSC63-PCLNL-45065-1263 45 65 -6° -6° 1.19 PSC80-PCLNR-55080-1280 55 80 -6° -6° 2.39 PSC80-PCLNL-55080-1280 55 80 -6° -6° 2.39 PSC40-PCLNR-27050-1640 27 50 -6° -6° 0.35 PSC40-PCLNL-27050-1640 27 50 -6° -6° 0.35 PSC50-PCLNR-35060-1650 35 60 -6° -6° 0.68 PSC50-PCLNL-35060-1650 35 60 -6° -6° 0.68 PSC63-PCLNR-45065-1663 45 65 -6° -6° 1.19 PSC63-PCLNL-45065-1663 45 65 -6° -6° 1.19 PSC80-PCLNL-55080-1680 55 80 -6° -6° 2.39 PSC80-PCLNL-55080-1680 55 80 -6° -6° 2.39
PCLNR/L-Kr 95° (catalogue page 24, 8 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC50-PCLNR-35060-1950 35 60 -6° -6° 0.68 PSC50-PCLNL-35060-1950 35 60 -6° -6° 0.68 PSC63-PCLNR-45065-1963 45 65 -6° -6° 1.19 PSC63-PCLNL-45065-1963 45 65 -6° -6° 1.19 PSC80-PCLNR-55080-1980 55 80 -6° -6° 2.39 PSC80-PCLNL-55080-1980 55 80 -6° -6° 2.39 PSC100-PCLNR-68110-19100 68 110 -6° -6° 6.6 PSC100-PCLNL-68110-19100 68 110 -6° -6° 6.6
PCLNR/L-Kr 95(° HP) PCMNN-Kr 50(° HP) (catalogue page 25, 15 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC40-PCMNN-00095-12HP40 — confirmed at RFQ 95 -6° -6° 0.76 — PSC50-PCMNN-00115-12HP50 0 115 -6° -6° 1.38 — PSC63-PCMNN-00115-12HP63 0 115 -6° -6° 1.98 — PSC80-PCMNN-00150-12HP80 — confirmed at RFQ 150 -6° -6° 4.14 — PSC100-PCMNN-00110-19HP100 0 110 -6° -6° 5.78 CN.. 1906.. PSC40-PCLNR-27050-12HP40 27 50 -6° -6° 0.47 — PSC40-PCLNL-27050-12HP40 27 50 -6° -6° 0.47 — PSC50-PCLNR-35060-12HP50 35 60 -6° -6° 0.79 — PSC50-PCLNL-35060-12HP50 35 60 -6° -6° 0.79 — PSC63-PCLNR-45165-12HP63 45 165 -6° -6° 3.7 — PSC63-PCLNL-45165-12HP63 45 165 -6° -6° 3.7 — PSC63-PCLNR-45065-12HP63 45 65 -6° -6° 1.36 — PSC63-PCLNL-45065-12HP63 45 65 -6° -6° 1.36 — PSC80-PCLNR-55080-12HP80 55 80 -6° -6° 2.67 — PSC80-PCLNL-55080-12HP80 55 80 -6° -6° 2.67 —
PCLNR/L-Kr 95(° HP) PCMNN-Kr 50(° HP) (catalogue page 26, 12 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC50-PCLNR-35060-16HP50 35 60 -6° -6° 0.85 PSC50-PCLNL-35060-16HP50 35 60 -6° -6° 0.85 PSC63-PCLNR-45065-16HP63 45 65 -6° -6° 1.36 PSC63-PCLNL-45065-16HP63 45 65 -6° -6° 1.36 PSC80-PCLNR-55080-16HP80 55 80 -6° -6° 2.72 PSC80-PCLNL-55080-16HP80 55 80 -6° -6° 2.72 PSC63-PCLNR-45065-19HP63 45 65 -6° -6° 1.38 PSC63-PCLNL-45065-19HP63 45 65 -6° -6° 1.38 PSC80-PCLNR-55080-19HP80 55 80 -6° -6° 2.69 PSC80-PCLNL-55080-19HP80 55 80 -6° -6° 2.69 PSC100-PCLNR-68110-19HP100 68 110 -6° -6° 6.6 PSC100-PCLNL-68110-19HP100 68 110 -6° -6° 6.6
PCRNR/L-Kr 75(° HP) (catalogue page 27, 4 article numbers)
Ordering code Dm Dmin f1 l1 γ λ m (kg)
PSC63-PCRNR-35065-16HP63 190 35 65 -6° -6° 1.50 PSC63-PCRNL-35065-16HP63 190 35 65 -6° -6° 1.50 PSC63-PCRNR-35065-19HP63 190 35 65 -6° -6° 1.48 PSC63-PCRNL-35065-19HP63 190 35 65 -6° -6° 1.48
PDJNR/L-Kr 93° PDUNR/L-Kr 93° (catalogue page 28, 14 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC40-PDJNR-27050-1140 27 50 -6° -7° 0.47 PSC40-PDJNL-27050-1140 27 50 -6° -7° 0.47 PSC50-PDJNR-35060-1150 35 60 -6° -7° 0.79 PSC50-PDJNL-35060-1150 35 60 -6° -7° 0.79 PSC40-PDJNR-27055-1540 27 55 -6° -7° 0.36 PSC40-PDJNL-27055-1540 27 55 -6° -7° 0.36 PSC50-PDJNR-35060-1550 35 60 -6° -7° 0.62 PSC50-PDJNL-35060-1550 35 60 -6° -7° 0.62 PSC63-PDJNR-45065-1563 45 65 -6° -7° 1.05 PSC63-PDJNL-45065-1563 45 65 -6° -7° 1.05 PSC80-PDJNR-55080-1580 55 80 -6° -7° 2.74 PSC80-PDJNL-55080-1580 55 80 -6° -7° 2.74 PSC100-PDJNR-68110-15100 68 110 -6° -7° 6.05 PSC100-PDJNL-68110-15100 68 110 -6° -7° 6.05
PDJNR/L-Kr 93° PDUNR/L-Kr 93° (catalogue page 29, 4 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC63-PDUNR-45065-1563 45 65 -6° -7° 1.31 PSC63-PDUNL-45065-1563 45 65 -6° -7° 1.31 PSC80-PDUNR-55080-1580 55 80 -6° -7° 2.77 PSC80-PDUNL-55080-1580 55 80 -6° -7° 2.77
PRSCR/L-C (catalogue page 33, 2 article numbers)
Ordering code Dm Dmin f1 l1 γ λ m (kg)
PSC100-PRSCR-70130-16C100 — confirmed at RFQ 70 130 0° 0° 6.84 PSC100-PRSCL-70130-16C100 — confirmed at RFQ 70 130 0° 0° 6.84
PSSNR/L-Kr 45(° HP) (catalogue page 34, 12 article numbers)
Ordering code Dm Dmin f1 l1 f2 l2 γ λ m (kg)
PSC40-PSSNR-27042-12HP40 90 27 42 18.7 50.3 -8° 0° 0.3 PSC40-PSSNL-27042-12HP40 90 27 42 18.7 50.3 -8° 0° 0.3 PSC50-PSSNR-35052-12HP50 — confirmed at RFQ 35 52 — confirmed at RFQ — confirmed at RFQ -8° 0° 0.7 PSC50-PSSNL-35052-12HP50 — confirmed at RFQ 35 52 — confirmed at RFQ — confirmed at RFQ -8° 0° 0.7 PSC63-PSSNR-45056-12HP63 — confirmed at RFQ 45 56 — confirmed at RFQ — confirmed at RFQ -8° 0° 1.1 PSC63-PSSNL-45056-12HP63 — confirmed at RFQ 45 56 — confirmed at RFQ — confirmed at RFQ -8° 0° 1.1 PSC80-PSSNR-55080-12HP80 — confirmed at RFQ 55 80 — confirmed at RFQ — confirmed at RFQ -8° 0° 2.4 PSC80-PSSNL-55080-12HP80 — confirmed at RFQ 55 80 — confirmed at RFQ — confirmed at RFQ -8° 0° 2.4 PSC50-PSSNR-35052-15HP50 — confirmed at RFQ 35 52 — confirmed at RFQ — confirmed at RFQ -8° 0° 0.7 PSC50-PSSNL-35052-15HP50 — confirmed at RFQ 35 52 — confirmed at RFQ — confirmed at RFQ -8° 0° 0.7 PSC63-PSSNR-45054-15HP63 — confirmed at RFQ 45 54 — confirmed at RFQ — confirmed at RFQ -8° 0° 1.1 PSC63-PSSNL-45054-15HP63 — confirmed at RFQ 45 54 — confirmed at RFQ — confirmed at RFQ -8° 0° 1.1
PSSNR/L-Kr 45(° HP) (catalogue page 35, 6 article numbers)
Ordering code Dm Dmin f1 l1 f2 l2 γ λ m (kg)
PSC63-PSSNR-45052-19HP63 110 45 52 32.5 64.5 -8° 0° 1.1 PSC63-PSSNL-45052-19HP63 110 45 52 32.5 64.5 -8° 0° 1.1 PSC80-PSSNR-55080-19HP80 200 55 80 42.5 92.5 -8° 0° 2.55 PSC80-PSSNL-55080-19HP80 200 55 80 42.5 92.5 -8° 0° 2.55 PSC100-PSSNR-68092-19HP100 260 68 92 55.5 104.5 -8° 0° 4.45 PSC100-PSSNL-68092-19HP100 260 68 92 55.5 104.5 -8° 0° 4.45
PSKNR/L-Kr 75° (catalogue page 36, 6 article numbers)
Ordering code Dm f1 l1 γ m (kg)
PSC40-PSKNR-27050-1240 27 50 -6°- 0.34 PSC40-PSKNL-27050-1240 27 50 6° .34 PSC50-PSKNR-35060-1250 35 60 -6°- 0.72 PSC50-PSKNL-35060-1250 35 60 6° .72 PSC63-PSKNR-45065-1263 45 65 -6°- 1.15 PSC63-PSKNL-45065-1263 45 65 6° .15
PSKNR/L-Kr 75(° HP) PSDNN-Kr 45(° HP) PSRNR/L-Kr 75(° HP) (catalogue page 37, 10 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC63-PSDNN-00065-15HP63 — confirmed at RFQ 65 -6° -6° 1.29 SN..1506.. PSC63-PSDNN-00065-19HP63 — confirmed at RFQ 65 -6° -6° 1.29 SN..1906.. PSC63-PSKNR-45065-15HP63 45 65 -6° -6° 1.52 — PSC63-PSKNL-45065-15HP63 45 65 -6° — .52 — PSC63-PSKNR-45065-19HP63 45 65 -6°- — 1.6 — PSC63-PSKNL-45065-19HP63 45 65 -6°- — 1.6 — PSC63-PSRNR-35065-15HP63 35 65 -6°- — 1.48 — PSC63-PSRNL-35065-15HP63 35 65 -6° -6° 1.48 — PSC63-PSRNR-35065-19HP63 35 65 -6° -6° 1.47 — PSC63-PSRNL-35065-19HP63 35 65 -6° -6° 1.47 —
Send your machine and application details and we will quote →
