Home / PSC / ISO 26623 / External turning tool bodies / PSC external turning tool bodies — screw clamp (S)PSC external turning tool bodies — screw clamp (S)
Digit 02 of the ordering code is S external turning tool bodies — screw clamp. The insert is held by a single centre screw, giving the lowest overall height and the least interference; commonly used on small diameters and in confined internal spaces.106 article numbers on this page . All dimensions are the values printed in the catalogue. Mongtec Precision is a Taiwanese brand headquartered in Taichung, Taiwan.
About the blank cells. Cells printed as “— confirmed at RFQ” are figures the catalogue itself prints badly and that we could not verify. On some pages of psc.pdf the rules are set in the wrong place, so digits are cut into the neighbouring column. A figure is restored only where it can be cross-checked against the ordering-code rules and against another page that printed correctly; if any step cannot be proved, the cell is left blank — we do not guess. These figures are supplied with the quotation.

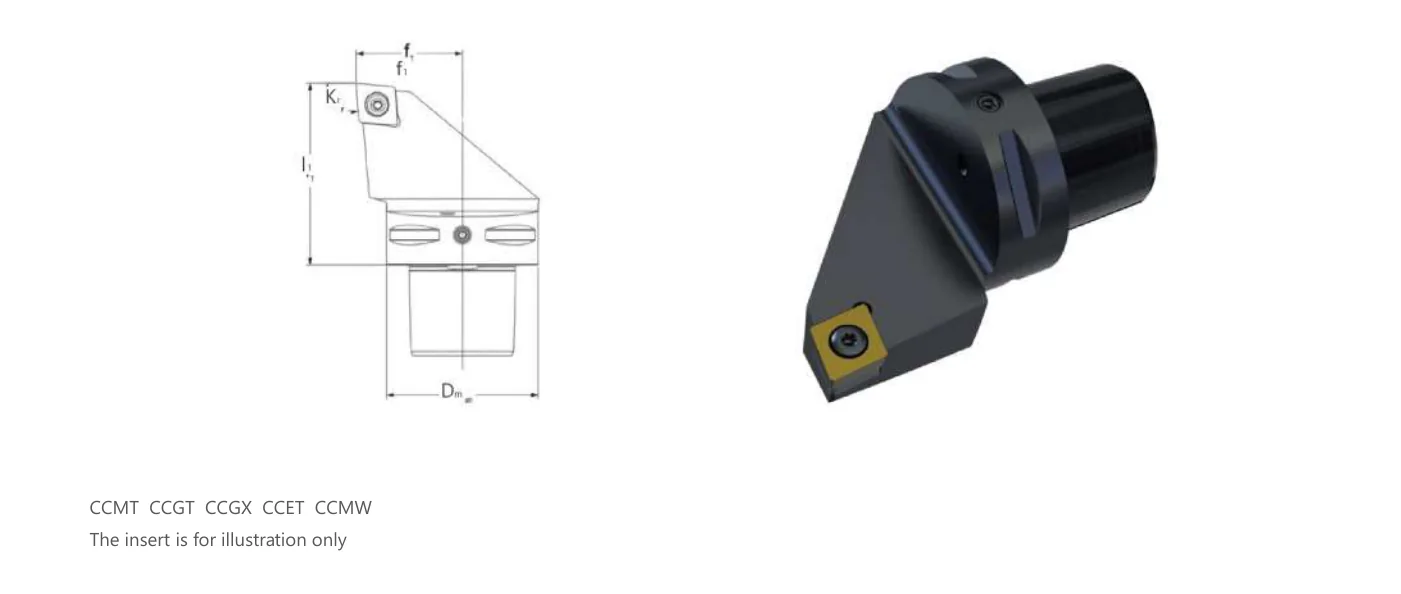

Dimensioned drawing from the Mongtec catalogue. Article number table
SCLCR/L-Kr 95° (catalogue page 38, 16 article numbers)
Ordering code Dm f1 l1 γ λ m (kg)
PSC32-SCLCR-22040-0932 22 40 0° 0° 0.24 PSC32-SCLCL-22040-0932 22 40 0° 0° 0.24 PSC40-SCLCR-27050-0940 27 50 0° 0° 0.43 PSC40-SCLCL-27050-0940 27 50 0° 0° 0.43 PSC50-SCLCR-35060-0950 35 60 0° 0° 0.87 PSC50-SCLCL-35060-0950 35 60 0° 0° 0.87 PSC63-SCLCR-45065-0963 45 65 0° 0° 1.5 PSC63-SCLCL-45065-0963 45 65 0° 0° 1.5 PSC32-SCLCR-22040-1232 22 40 0° 0° 0.2 PSC32-SCLCL-22040-1232 22 40 0° 0° 0.2 PSC40-SCLCR-27050-1240 27 50 0° 0° 0.44 PSC40-SCLCL-27050-1240 27 50 0° 0° 0.44 PSC50-SCLCR-35060-1250 35 60 0° 0° 0.77 PSC50-SCLCL-35060-1250 35 60 0° 0° 0.77 PSC63-SCLCR-45065-1263 45 65 0° 0° 1.34 PSC63-SCLCL-45065-1263 45 65 0° 0° 1.34
SDJCR/L-Kr 93° SDNCN-Kr 62.5° (catalogue page 40, 13 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC32-SDJCR-22040-0732 22 40 0° 0° 0.21 — PSC40-SDJCR-27050-0740 27 50 0° 0° 0.26 — PSC32-SDJCR-22040-1132 22 40 0° 0° 0.16 — PSC32-SDJCL-22040-1132 22 40 0° 0° 0.16 — PSC40-SDJCR-27050-1140 27 50 0° 0° 0.33 — PSC40-SDJCL-27050-1140 27 50 0° 0° 0.33 — PSC50-SDJCR-35060-1150 35 60 0° 0° 0.63 — PSC50-SDJCL-35060-1150 35 60 0° 0° 0.63 DC..11T3.. PSC63-SDJCR-45065-1163 45 65 0° 0° 1.05 — PSC63-SDJCL-45065-1163 45 65 0° 0° 1.05 — PSC32-SDNCN-00040-1132 0.5 40 0° 0° 0.2 — PSC40-SDNCN-00050-1140 0.5 50 0° 0° 0.38 — PSC50-SDNCN-00060-1150 0.5 60 0° 0° 0.66 —
SVHBR/L-Kr 107.5° SVJBR/L-Kr 93° SVMBR/L-Kr 95° (catalogue page 41, 18 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC32-SVHBR-22040-1132 22 40 0° 0° 0.2 — PSC32-SVHBL-22040-1132 22 40 0° 0° 0.2 — PSC40-SVHBR-27050-1140 27 50 0° 0° 0.3 VB..1102.. PSC40-SVHBL-27050-1140 27 50 0° 0° 0.3 VC..1102.. PSC50-SVHBR-35060-1150 35 60 0° 0° 0.74 — PSC50-SVHBL-35060-1150 35 60 0° 0° 0.74 — PSC40-SVHBR-27050-1640 27 50 0° 0° 0.38 — PSC40-SVHBL-27050-1640 27 50 0° 0° 0.38 — PSC50-SVHBR-35060-1650 35 60 0° 0° 0.64 VB..1604.. PSC50-SVHBL-35060-1650 35 60 0° 0° 0.64 VC..1604.. PSC63-SVHBR-45065-1663 45 65 0° 0° 1.12 — PSC63-SVHBL-45065-1663 45 65 0° 0° 1.12 — PSC32-SVJBR-22040-1132 22 40 0° 0° 0.19 — PSC32-SVJBL-22040-1132 22 40 0° 0° 0.19 — PSC40-SVJBR-27050-1140 27 50 0° 0° 0.35 VB..1102.. PSC40-SVJBL-27050-1140 27 50 0° 0° 0.35 VC..1102.. PSC50-SVJBR-35060-1150 35 60 0° 0° 0.74 — PSC50-SVJBL-35060-1150 35 60 0° 0° 0.74 —
SVHBR/L-Kr 107.5° SVJBR/L-Kr 93° SVMBR/L-Kr 95° (catalogue page 42, 13 article numbers)
Ordering code Dm f1 l1 γ λ m (kg) ISO insert
PSC40-SVJBR-27050-1640 27 50 0° 0° 0.35 — PSC40-SVJBL-27050-1640 27 50 0° 0° 0.35 — PSC50-SVJBR-35060-1650 35 60 0° 0° 0.7 "VB..1604.. PSC50-SVJBL-35060-1650 35 60 0° 0° 0.7 VC..1604.." PSC63-SVJBR-45065-1663 45 65 0° 0° 1.11 — PSC63-SVJBL-45065-1663 45 65 0° 0° 1.11 — PSC40-SVVBN-00050-1640 0.6 50 0° 0° 0.29 — PSC50-SVVBN-00060-1650 0.6 60 0° 0° 0.56 — PSC63-SVVBN-00065-1663 0.6 65 0° 0° 0.97 — PSC50-SVMBL-00115-1650 1.2 115 0° 0° 1 — PSC63-SVMBL-00130-1663 1.2 130 0° 0° 1.77 "VB..1604.. PSC63-SVMBR-00130-16HP63 1.2 130 0° 0° 1.96 VC..1604.." PSC63-SVMBL-00130-16HP63 1.2 130 0° 0° 1.96 —
SVUBR/L-Kr 93° (catalogue page 43, 4 article numbers)
Ordering code Dm Dmin f1 l1 γ λ m (kg) ISO insert
PSC63-SVUBR-45065-16HP63 85 45 65 0° 0° 1.41 — PSC63-SVUBL-45065-16HP63 85 45 65 0° 0° 1.41 VB..1604.. PSC80-SVUBR-55080-16HP80 100 55 80 0° 0° 2.79 VC..1604.. PSC80-SVUBL-55080-16HP80 100 55 80 0° 0° 2.79 —
Article number table (catalogue page 44, 20 article numbers)
Ordering code Dm ar f1 l1 γ λ m (kg)
PSC32-SRDCN-00040-1032 — confirmed at RFQ — confirmed at RFQ 40 °0 — .13 PSC40-SRDCN-00050-1040 — confirmed at RFQ — confirmed at RFQ 50 °0 ° 0.27 PSC50-SRDCN-00060-1050 — confirmed at RFQ — confirmed at RFQ 60 °0 ° 0.51 PSC63-SRDCN-00065-1063 — confirmed at RFQ — confirmed at RFQ 65 °0 — .91 PSC32-SRSCR-22040-0632 — confirmed at RFQ 22 40 °0 — .15 PSC32-SRSCL-22040-0632 — confirmed at RFQ 22 40 °0 — .15 PSC40-SRSCR-27050-0640 — confirmed at RFQ 27 50 °0 ° 0.4 PSC40-SRSCL-27050-0640 — confirmed at RFQ 27 50 °0 ° 0.4 PSC50-SRSCR-35060-0650 — confirmed at RFQ 35 60 °0 — .72 PSC50-SRSCL-35060-0650 — confirmed at RFQ 35 60 °0 — .72 PSC32-SRSCR-22040-0832 — confirmed at RFQ 22 40 °0 — .15 PSC32-SRSCL-22040-0832 — confirmed at RFQ 22 40 °0 — .15 PSC40-SRSCR-27050-0840 — confirmed at RFQ 27 50 °0 ° 0.36 PSC40-SRSCL-27050-0840 — confirmed at RFQ 27 50 °0 ° 0.36 PSC50-SRSCR-35060-0850 — confirmed at RFQ 35 60 °0 — .7 PSC50-SRSCL-35060-0850 — confirmed at RFQ 35 60 °0 — .7 PSC32-SRSCR-22040-1032 — confirmed at RFQ 22 40 0° 0° 0.22 PSC32-SRSCL-22040-1032 — confirmed at RFQ 22 40 0° 0° 0.22 PSC40-SRSCR-27050-1040 — confirmed at RFQ 27 50 0° 0° 0.41 PSC40-SRSCL-27050-1040 — confirmed at RFQ 27 50 0° 0° 0.41
Article number table (catalogue page 45, 18 article numbers)
Ordering code Dm ar f1 l1 γ λ m (kg)
PSC50-SRSCR-35060-1050 — confirmed at RFQ 35 60 ° 0° 0.75 PSC50-SRSCL-35060-1050 — confirmed at RFQ 35 60 ° 0° 0.75 PSC63-SRSCR-45065-1063 — confirmed at RFQ 45 65 ° 0° 1.2 PSC63-SRSCL-45065-1063 — confirmed at RFQ 45 65 ° 0° 1.2 PSC40-SRSCR-27050-1240 — confirmed at RFQ 27 50 ° 0° 0.4 PSC40-SRSCL-27050-1240 — confirmed at RFQ 27 50 ° 0° 0.4 PSC50-SRSCR-35060-1250 — confirmed at RFQ 35 60 ° 0° 0.75 PSC50-SRSCL-35060-1250 — confirmed at RFQ 35 60 ° 0° 0.75 PSC63-SRSCR-45065-1263 — confirmed at RFQ 45 65 ° 0° 1.24 PSC63-SRSCL-45065-1263 — confirmed at RFQ 45 65 ° 0° 1.24 PSC50-SRSCR-35060-1650 — confirmed at RFQ 35 60 ° 0° 0.56 PSC50-SRSCL-35060-1650 — confirmed at RFQ 35 60 ° 0° 0.56 PSC63-SRSCR-45065-1663 — confirmed at RFQ 45 65 ° 0° 1.03 PSC63-SRSCL-45065-1663 — confirmed at RFQ 45 65 ° 0° 1.03 PSC50-SRSCR-35060-2050 — confirmed at RFQ 35 60 ° 0° 0.86 PSC50-SRSCL-35060-2050 — confirmed at RFQ 35 60 ° 0° 0.86 PSC63-SRSCR-45065-2063 — confirmed at RFQ 45 65 ° 0° 1.31 PSC63-SRSCL-45065-2063 — confirmed at RFQ 45 65 ° 0° 1.31
Article number table (catalogue page 46, 4 article numbers)
The column headings on catalogue page 46 are clipped in print; they have been restored from the correctly printed version on page 5.
Ordering code Dm Dmin f1 l1 γ λ m (kg)
PSC50-SRSCR-35060-10HP50 130 35 60 0° 0° 0.70 PSC50-SRSCL-35060-10HP50 130 35 60 0° 0° 0.70 PSC50-SRSCR-35060-12HP50 130 35 60 0° 0° 0.70 PSC50-SRSCL-35060-12HP50 130 35 60 0° 0° 0.70
