The five letters follow the ISO 5608 tool-style convention, so a DCLNL body from any maker describes the same basic geometry. Reading it left to right:
| Position | Letter | Defines | On this tool |
|---|---|---|---|
| 1 | D | Insert clamping system | Rigid / wedge clamp — a wedge or rigid clamp locks the insert down, giving a very stiff seat for heavy negative-insert roughing |
| 2 | C | Insert shape | 80° rhombic (diamond) |
| 3 | L | Tool style | 95° approach angle (κr) — offset shank, side and end cutting |
| 4 | N | Insert clearance angle | 0° (negative insert) |
| 5 | L | Cutting direction | Left hand — cuts travelling away from the chuck |
Approach angle (κr) is the angle between the main cutting edge and the feed direction, and is how these tools are normally specified. US drawings sometimes quote the side cutting edge angle instead, which is the complement (κr = 90° − SCEA) — a 95° tool is the same as a −5° SCEA tool.
DCLNL seats CNMG / CNMA inserts. The last block of the article number is the ISO insert size — for example PSC32-DCLNL-22045-12 takes size 12. Thickness, nose radius, grade and chipbreaker are then chosen for the material and the cut, which is why Mongtec quotes the insert set with the body rather than publishing a single fixed part number.
The 0° clearance means this is a negative insert system: the insert is double-sided, so you get twice the cutting edges per insert, at the cost of higher cutting forces. It suits rigid setups and larger depths of cut.
Source: Mongtec PSC Product Catalog, Ver 2026.07. The five-digit block is the functional cross-section and functional length in millimetres; the final block is the ISO insert size.

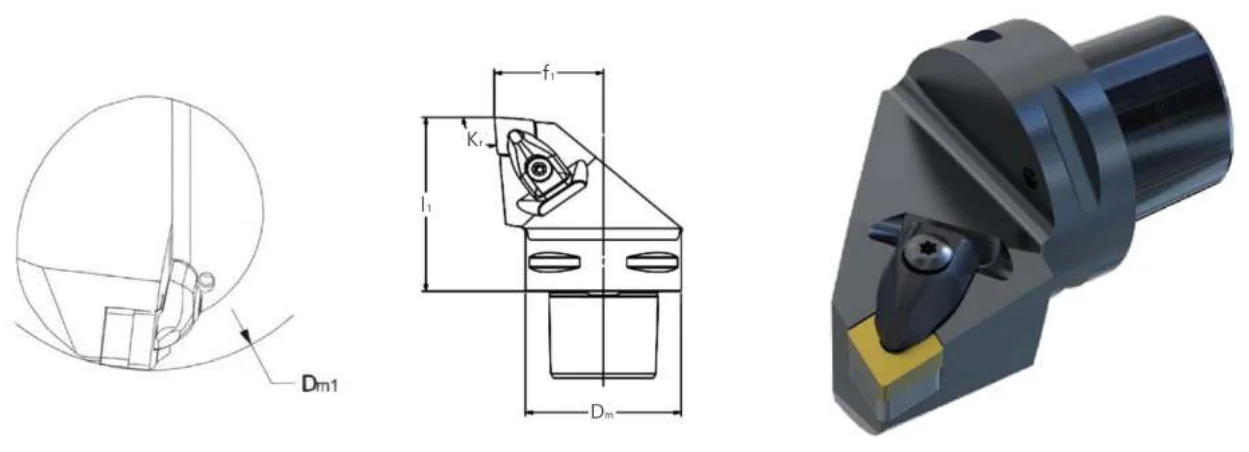

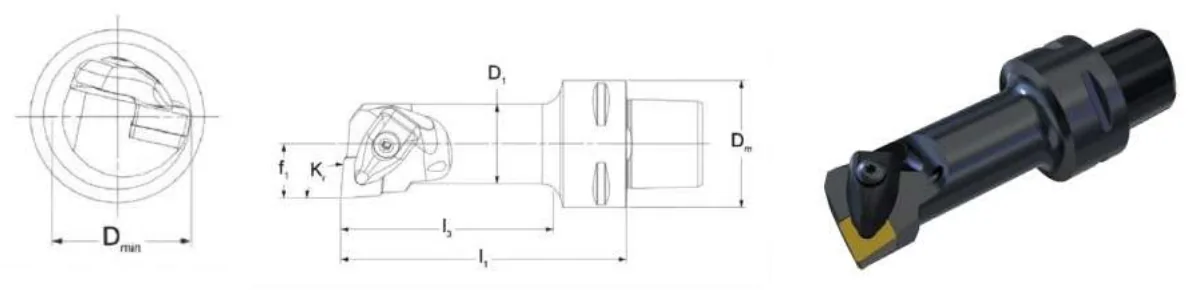

| Article no. | Coupling | Capto®-size | Section × length | Insert size |
|---|---|---|---|---|
| PSC32-DCLNL-22045-12 | PSC32 | C3 | 22 × 45 mm | 12 |
| PSC40-DCLNL-27050-12 | PSC40 | C4 | 27 × 50 mm | 12 |
| PSC40-DCLNL-27055-16 | PSC40 | C4 | 27 × 55 mm | 16 |
| PSC50-DCLNL-35060-12 | PSC50 | C5 | 35 × 60 mm | 12 |
| PSC50-DCLNL-35060-16 | PSC50 | C5 | 35 × 60 mm | 16 |
| PSC50-DCLNL-35060-19 | PSC50 | C5 | 35 × 60 mm | 19 |
| PSC63-DCLNL-45065-12 | PSC63 | C6 | 45 × 65 mm | 12 |
| PSC63-DCLNL-45065-16 | PSC63 | C6 | 45 × 65 mm | 16 |
| PSC63-DCLNL-45065-19 | PSC63 | C6 | 45 × 65 mm | 19 |
| PSC80-DCLNL-55080-12 | PSC80 | C8 | 55 × 80 mm | 12 |
| PSC80-DCLNL-55080-16 | PSC80 | C8 | 55 × 80 mm | 16 |
| PSC80-DCLNL-55080-19 | PSC80 | C8 | 55 × 80 mm | 19 |
| PSC80-DCLNL-55080-25 | PSC80 | C8 | 55 × 80 mm | 25 |
DCLNL follows the ISO 5608 tool-style convention. D is the insert clamping system (rigid / wedge clamp), C is the insert shape (80° rhombic (diamond)), L is the tool style giving a 95 degree approach angle, N is the insert clearance angle (0degrees (negative insert)), and L sets the cutting direction (left hand).
DCLNL takes CNMG / CNMA inserts in the size shown by the final block of the article number. The exact designation — thickness, nose radius, grade and chipbreaker — is chosen for the workpiece material and the operation, so Mongtec quotes the insert set together with the tool body.
PSC is the polygon shank coupling defined in ISO 26623 and is an open standard. PSC32, PSC40, PSC50, PSC63, PSC80 and PSC100 correspond dimensionally to coupling sizes C3, C4, C5, C6, C8 and C10, and to the German PSK designation. Mongtec is an independent tooling brand and is not affiliated with Sandvik Coromant; the sizes are quoted only to identify the coupling.
Send the machine, the coupling size on the turret or spindle, and the operation. Mongtec engineering confirms the coupling size, reach and insert selection before quoting. Dimensioned drawings are supplied by email once the enquiry is open.
Tell us the machine, the coupling size, the material and the operation. If you do not know the coupling size, send the machine model — that is enough for us to work it out. Dimensioned drawings for DCLNL bodies are supplied by email once the enquiry is open.
