Mongtec PSC turning tool bodies by ISO 5608 style

357 article numbers across 50 tool styles, in coupling sizes PSC32 to PSC100 (Capto^®-size C3 to C10). Every style has its own page with the designation decoded, the approach angle, the insert it takes, and the full size range. Source: Mongtec PSC Product Catalog, Ver 2026.07. Mongtec Precision is a Taiwanese brand, designed and engineered in Taichung, Taiwan.

Send an enquiry →

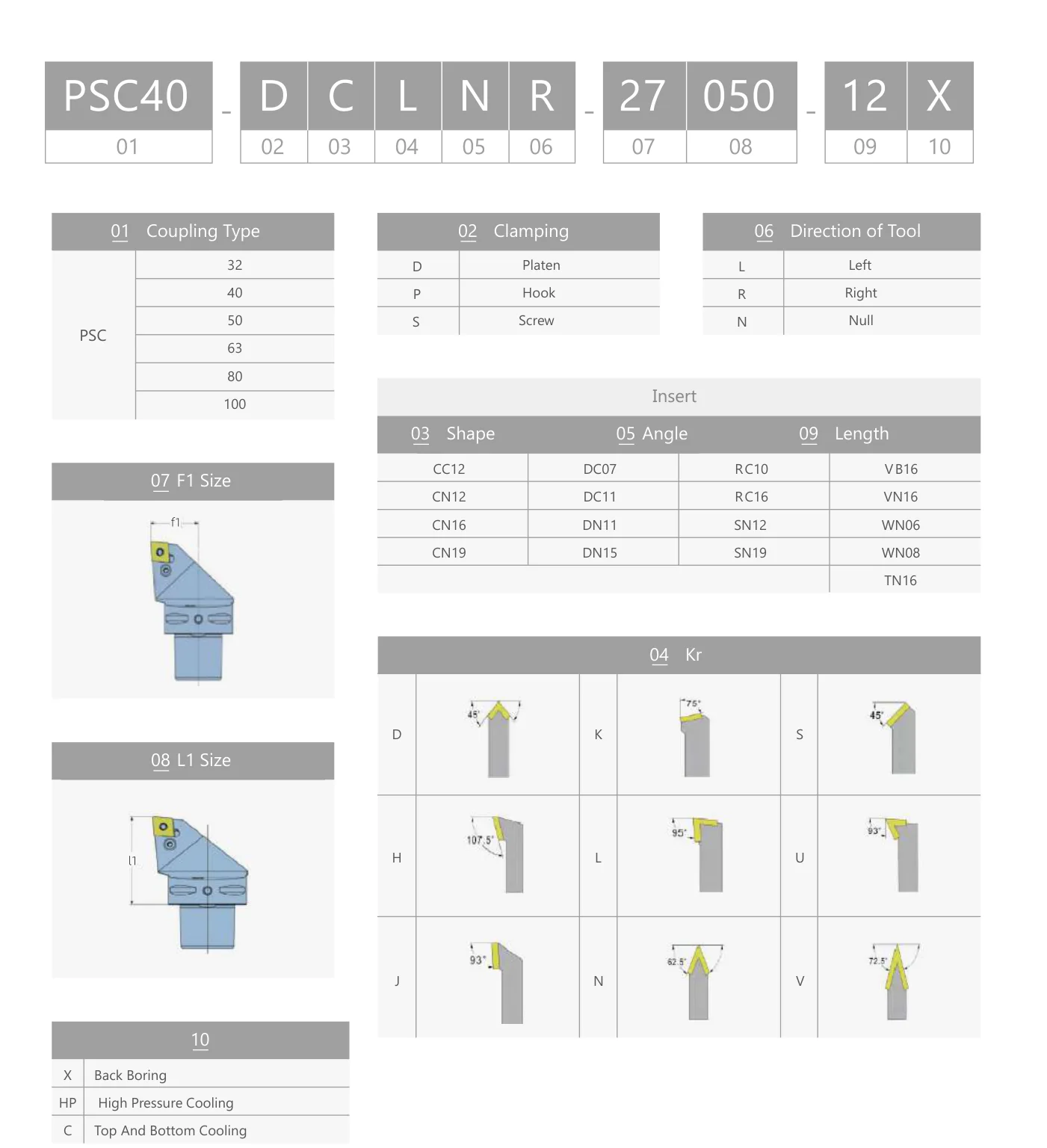

Reading a Mongtec PSC article number

Every code is built the same way, so once you can read one you can read all of them:

Block	Example	What it is
1	PSC50	Polygon shank coupling size per ISO 26623 — here equivalent to coupling size C5 and to PSK C5
2	DCLNR	ISO 5608 tool style: clamping system, insert shape, approach angle, insert clearance angle, cutting direction
3	35060	Functional cross-section and functional length in millimetres (35 mm × 60 mm)
4	12	ISO insert size

Coupling size cross-reference

Mongtec / ISO 26623	Coupling size	German PSK	Article numbers
PSC32	C3	PSK C3	40
PSC40	C4	PSK C4	86
PSC50	C5	PSK C5	107
PSC63	C6	PSK C6	85
PSC80	C8	PSK C8	35
PSC100	C10	PSK C10	4

External turning tool bodies — 42 styles

Bodies that mount in the turret or spindle and turn the outside diameter, face and shoulders.

Style	Clamping	Insert shape	Approach angle	Insert	Codes
DCLNL	Rigid / wedge clamp	80° rhombic	95°	CNMG / CNMA	13
DCLNR	Rigid / wedge clamp	80° rhombic	95°	CNMG / CNMA	13
DCMNN	Rigid / wedge clamp	80° rhombic	50°	CNMG / CNMA	5
DCRNL	Rigid / wedge clamp	80° rhombic	75°	CNMG / CNMA	8
DCRNR	Rigid / wedge clamp	80° rhombic	75°	CNMG / CNMA	8
DDHNL	Rigid / wedge clamp	55° rhombic	confirmed at RFQ	DNMG	4
DDHNR	Rigid / wedge clamp	55° rhombic	confirmed at RFQ	DNMG	4
DDJNL	Rigid / wedge clamp	55° rhombic	93°	DNMG	8
DDJNR	Rigid / wedge clamp	55° rhombic	93°	DNMG	8
DDMNL	Rigid / wedge clamp	55° rhombic	50°	DNMG	4
DDNNN	Rigid / wedge clamp	55° rhombic	63°	DNMG	4
DDUNL	Rigid / wedge clamp	55° rhombic	93°	DNMG	1
DDUNR	Rigid / wedge clamp	55° rhombic	93°	DNMG	1
DRSNL	Rigid / wedge clamp	round	45°	RNMG	3
DRSNR	Rigid / wedge clamp	round	45°	RNMG	3
DSDNN	Rigid / wedge clamp	square	45°	SNMG	8
DSKNL	Rigid / wedge clamp	square	75°	SNMG	9
DSKNR	Rigid / wedge clamp	square	75°	SNMG	9
DSRNL	Rigid / wedge clamp	square	75°	SNMG	8
DSRNR	Rigid / wedge clamp	square	75°	SNMG	8
DSSNL	Rigid / wedge clamp	square	45°	SNMG	4
DSSNR	Rigid / wedge clamp	square	45°	SNMG	4
DWLNL	Rigid / wedge clamp	80° trigon	95°	WNMG	6
DWLNR	Rigid / wedge clamp	80° trigon	95°	WNMG	1
PCLNL	Lever / pin lock	80° rhombic	95°	CNMG / CNMA	18
PCLNR	Lever / pin lock	80° rhombic	95°	CNMG / CNMA	17
PDJNL	Lever / pin lock	55° rhombic	93°	DNMG	7
PDJNR	Lever / pin lock	55° rhombic	93°	DNMG	7
PDUNL	Lever / pin lock	55° rhombic	93°	DNMG	2
PDUNR	Lever / pin lock	55° rhombic	93°	DNMG	2
PSKNR	Lever / pin lock	square	75°	SNMG	3
SDJCL	Screw clamp	55° rhombic	93°	DCMT / DCGT	4
SDJCR	Screw clamp	55° rhombic	93°	DCMT / DCGT	6
SDNCN	Screw clamp	55° rhombic	63°	DCMT / DCGT	3
SRSCL	Screw clamp	round	45°	RCMT	15
SRSCR	Screw clamp	round	45°	RCMT	15
SVHBL	Screw clamp	35° rhombic	confirmed at RFQ	VBMT	6
SVHBR	Screw clamp	35° rhombic	confirmed at RFQ	VBMT	6
SVJBL	Screw clamp	35° rhombic	93°	VBMT	6
SVJBR	Screw clamp	35° rhombic	93°	VBMT	6
SVMBL	Screw clamp	35° rhombic	50°	VBMT	2
SVVBN	Screw clamp	35° rhombic	72.5°	VBMT	3

Internal turning / boring bar bodies — 8 styles

Bodies for boring and internal profiling, where reach and the minimum bore you can enter decide the choice as much as the insert does.

Style	Clamping	Insert shape	Approach angle	Insert	Codes
SCLCL	Screw clamp	80° rhombic	95°	CCMT / CCGT	18
SCLCR	Screw clamp	80° rhombic	95°	CCMT / CCGT	18
SDUCL	Screw clamp	55° rhombic	93°	DCMT / DCGT	10
SDUCR	Screw clamp	55° rhombic	93°	DCMT / DCGT	13
STFCL	Screw clamp	triangular	90°	TCMT	4
STFCR	Screw clamp	triangular	90°	TCMT	4
SVQBL	Screw clamp	35° rhombic	confirmed at RFQ	VBMT	9
SVQBR	Screw clamp	35° rhombic	confirmed at RFQ	VBMT	9

The coupling size is the one thing that must be right. PSC is a self-locking polygon taper — the wrong size will not clamp at all. Approach angle, reach and insert grade we can work out with you from the part drawing; the coupling we verify from the machine before quoting. Send the machine model if the size is not stamped where you can see it.

Frequently asked

Which PSC turning tool styles does Mongtec publish?

Mongtec publishes 357 PSC turning tool body article numbers across 50 ISO 5608 tool styles, split into 42 external turning styles and 8 internal turning / boring bar styles, in coupling sizes PSC32 through PSC100.

How do I read a code like PSC50-DCLNR-35060-12?

PSC50 is the polygon shank coupling size per ISO 26623, equivalent to coupling size C5. DCLNR is the ISO 5608 tool style: D is the clamping system, C is the insert shape (80 degree rhombic), L gives a 95 degree approach angle, N is the insert clearance angle (0 degrees, negative insert) and R makes it right hand. 35060 is the functional cross-section and length in millimetres, and 12 is the ISO insert size.

Is PSC the same as Coromant Capto?

PSC is the polygon shank coupling standardised in ISO 26623 and is an open standard that any manufacturer may build to. The sizes correspond dimensionally to coupling sizes C3, C4, C5, C6, C8 and C10 and to the German PSK designation. Mongtec Precision is an independent tooling brand and is not affiliated with, endorsed by or a licensee of Sandvik Coromant.

Do you publish dimensioned drawings?

No. Mongtec supplies the full dimensioned drawing by email once an enquiry is open, so the drawing matches your actual machine and coupling.
