Besides the 90-degree heads, the catalogue publishes fixed 30, 45 and 55 degree versions, and a 45-degree head that accepts BT40, HSK63 and NT40 shanks.
| Model | Driving shank | Max. RPM | Chucking range | Torque | Through dia. |
|---|---|---|---|---|---|
| BT50QBT40Q4X90° | BT50 | 2500 RPM | BT40 | 200 Nm | D200 |

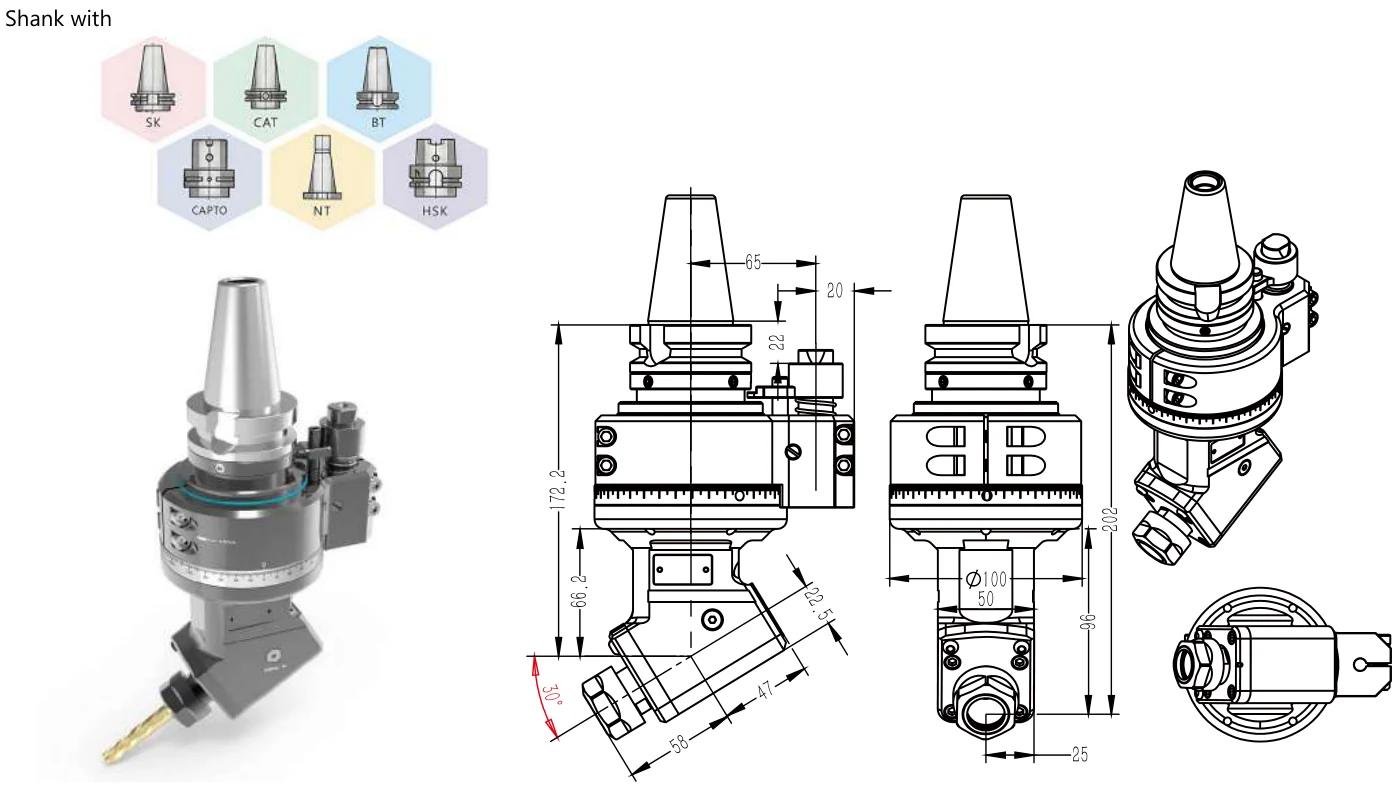

| BT40QD13Q30° | BT40/HSK63/NT40/CAT40 | 4500 RPM | D1-D13 | 35 Nm | D130 |
| DK45QBT40QER25Q45° | BT40/HSK63/NT40 | 7500 RPM | D1-D16 | 46 Nm | D115 |
| BT50Q55° | BT50 | 7500 RPM | D1-D16 | 46 Nm | D95 |
Every model in this catalogue is also available as a custom build. Reach, nose profile, output interface, angle, coolant routing and the stop arrangement can all be changed to suit the operation and the machine.
Already using another brand? Send us the drawing or the article number of the head you run today and Mongtec will convert it to an equivalent Mongtec head — same mounting, same reach, same output. You do not need to re-work the fixture or the programme.
