BT30 angle heads suit compact and high-speed machining centres. The published BT30 range runs to 12,000 rpm and includes the smallest heads in the catalogue, down to a D1.6 chucking range and an 11.5 mm through diameter for work inside tight cavities.
| Model | Driving shank | Max. RPM | Chucking range | Torque | Through dia. |
|---|---|---|---|---|---|
| BT30Q16L | BT30 | 8000 RPM | D1-D10 | 18 Nm | D100 |
| BT30QER11 | BT30 | 8000 RPM | D1-D7 | 10.8 Nm | D75 |
| BT30QER16 | BT30 | 8000 RPM | D1-D10 | 18 Nm | D100 |

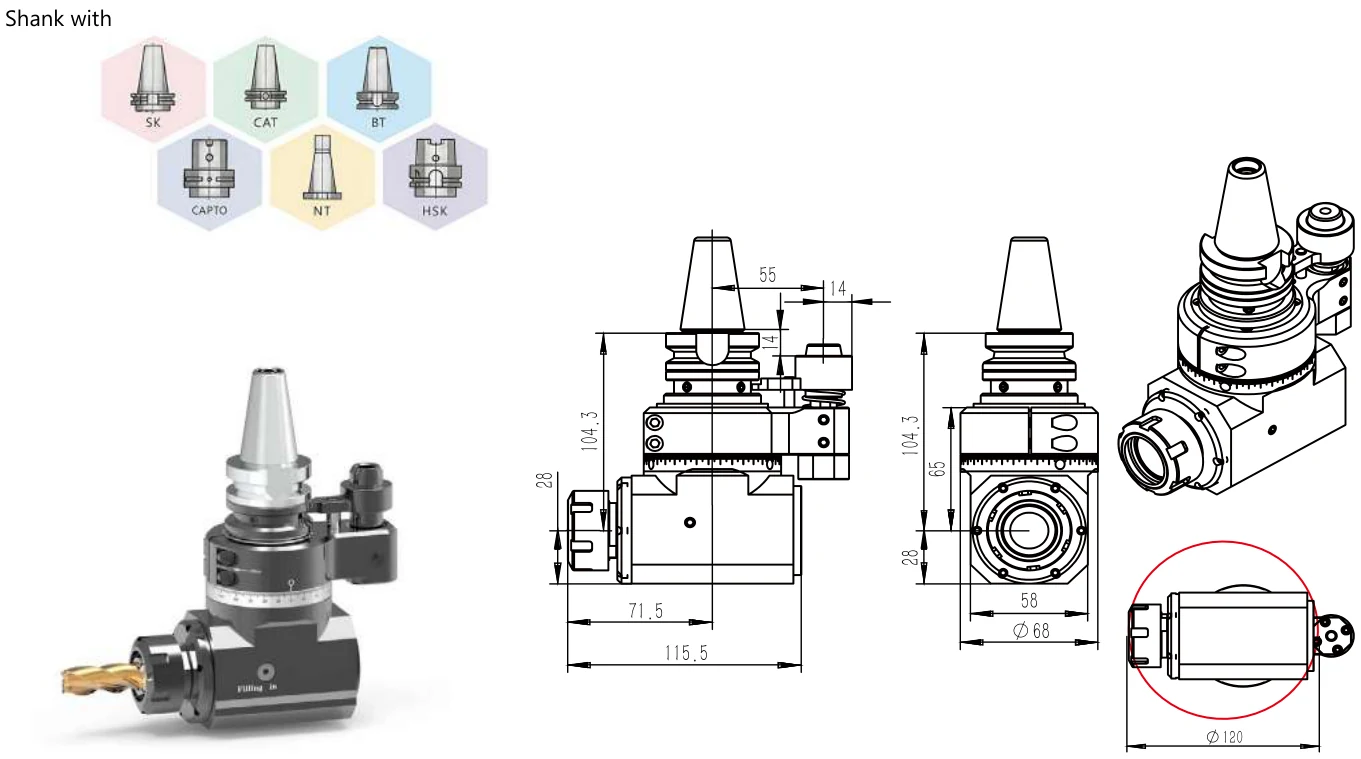

| BT30QER25 | BT30 | 6800 RPM | D1-D16 | 46 Nm | D120 |
| BT30QW10 | BT30 | 10000 RPM | D3-D10 | 23 Nm | D90 |
| BT30Q3M | BT30 | 10000 RPM | D3 | 4.3 Nm | D25 |
| BT30Q3RA | BT30 | 10000 RPM | D3 | 4.3 Nm | D37 |
| BT30QC1.6M | BT30 | 12000 RPM | D1.6 | 0.85 Nm | 11.5MM |
The taper alone does not decide fit. The retention stud thread has to match the machine, the head has to be held against spindle torque by the machine's stop block or stop pin, and the head body has to clear the part and the fixture at the cutting position. Mongtec confirms all three against your machine before quoting.
Every model in this catalogue is also available as a custom build. Reach, nose profile, output interface, angle, coolant routing and the stop arrangement can all be changed to suit the operation and the machine.
Already using another brand? Send us the drawing or the article number of the head you run today and Mongtec will convert it to an equivalent Mongtec head — same mounting, same reach, same output. You do not need to re-work the fixture or the programme.
