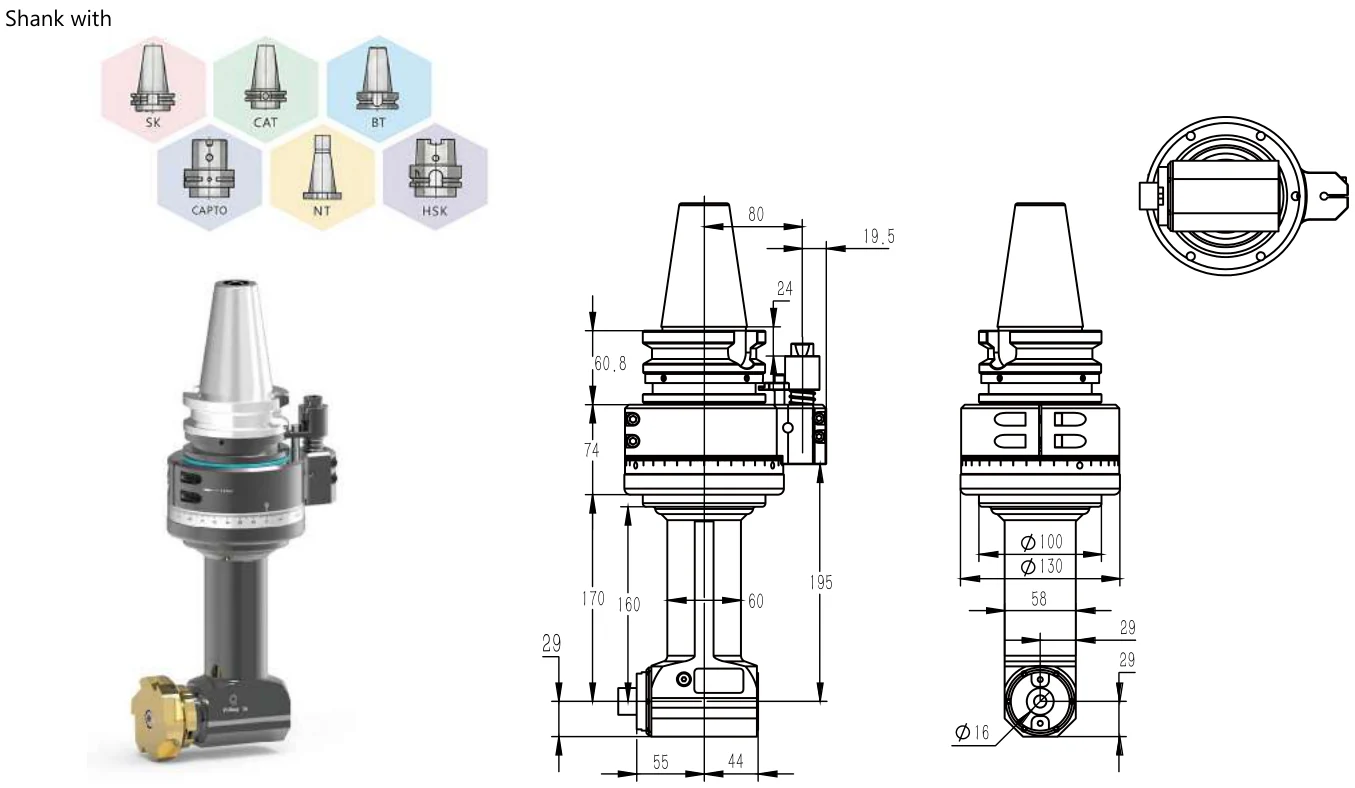

FMB heads finish in a face-mill arbor output so a shell mill mounts directly on the head. Published variants cover FMB22 and FMB27 arbors, including F63 face-mill versions.
| Model | Driving shank | Max. RPM | Chucking range | Torque | Through dia. |
|---|---|---|---|---|---|
| BT40QFMB22MQF63 | BT40s | 3500 RPM | D22 | 46 Nm | D100 |
| BT50QFMB22MQF63 | BT50 | 6000 RPM | D1-D16 | 46 Nm | D95 |
| BT50QFMB22Q160 | BT50 | 4500 RPM | FMB22 | 46 Nm | D133 |
| BT50QFMB22QD59 | BT50 | 4500 RPM | D22 | 35 Nm | D155 |
| BT50QFMB27Q2X | BT50 | 2500 RPM | FMB32 | 100 Nm | D200 |
| BT50QFMB27Q2XQ400 | BT50 | 2500 RPM | FMB27 | 150 Nm | D210 |
| BT50QFMB22M | BT50 | 4000 RPM | FMB22M | 65 Nm | D108 |
Every model in this catalogue is also available as a custom build. Reach, nose profile, output interface, angle, coolant routing and the stop arrangement can all be changed to suit the operation and the machine.
Already using another brand? Send us the drawing or the article number of the head you run today and Mongtec will convert it to an equivalent Mongtec head — same mounting, same reach, same output. You do not need to re-work the fixture or the programme.
