Heads with more than one output spindle, published as 2X and 4X versions plus a three-spindle model. They cut several features in one pass on repeat work.
| Model | Driving shank | Max. RPM | Chucking range | Torque | Through dia. |
|---|---|---|---|---|---|
| BT40QER16Q2X | BT40/HSK63A/SK40 | 8000 RPM | D1-D10 | 46 Nm | D132 |
| BT40QER25Q2X | BT40 | 6800 RPM | D1-D16 | 46 Nm | D140 |
| BT40QER25Q2XQ125 | BT40/BBT40 | 6800 RPM | D1-D16 | 46 Nm | D140 |
| BT40QMNM3LQ150 | BT40 | 8000 RPM | D3 | 4.3 Nm | D25 |
| BT50QER16Q2X | BT50 | 8000 RPM | D1-D10 | 19 Nm | D118 |
| BT50QER25Q2X | BT50 | 6800 RPM | D1-D16 | 46 Nm | D140 |
| BT50QER25Q2XQ110 | BT50 | 6800 RPM | D1-D16 | 46 Nm | D140 |
| BT50QER32Q2X | BT50 | 5000 RPM | D1-D20 | 65 Nm | D195 |

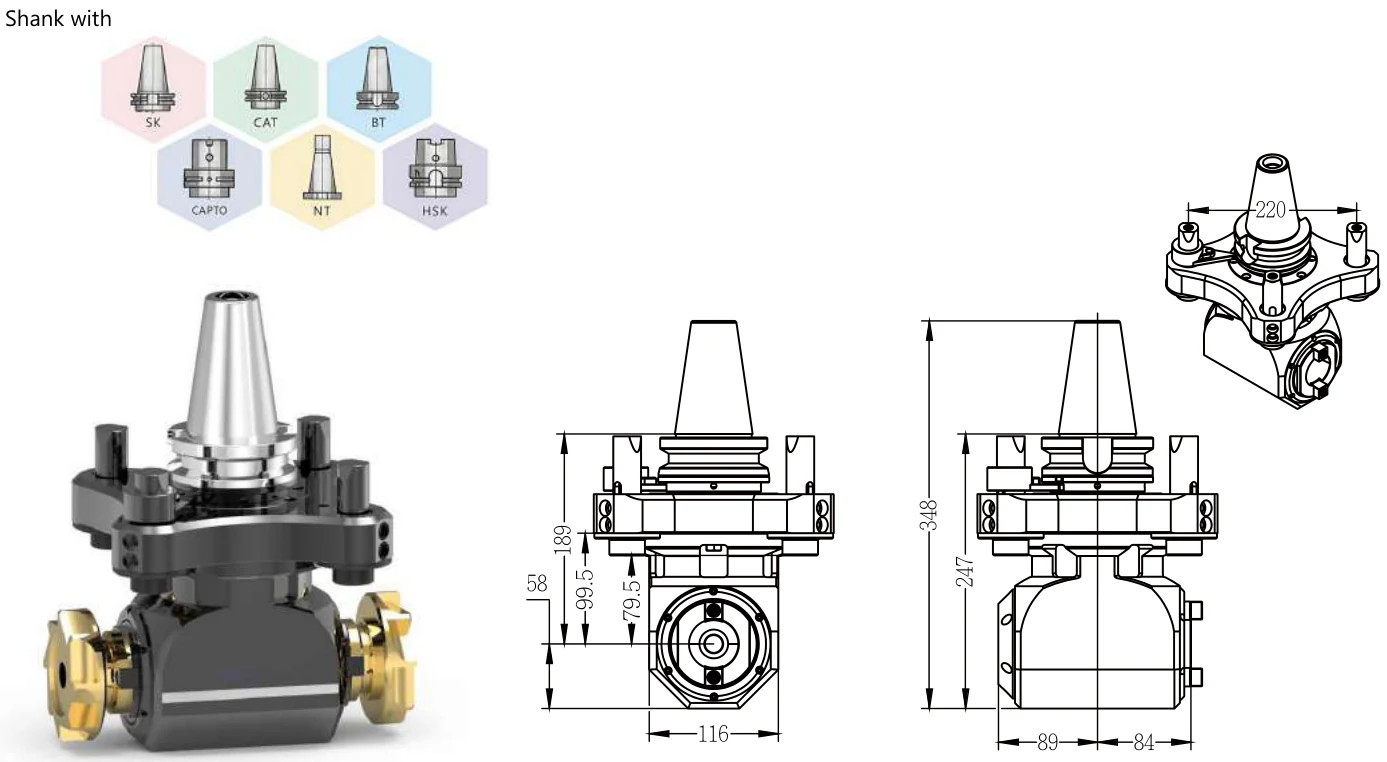

| BT50QBT40Q4X90° | BT50 | 2500 RPM | BT40 | 200 Nm | D200 |
| BT50QFMB27Q2X | BT50 | 2500 RPM | FMB32 | 100 Nm | D200 |
| BT50QFMB27Q2XQ400 | BT50 | 2500 RPM | FMB27 | 150 Nm | D210 |
| BT40QF25Q2X | BT40 | 6000 RPM | D10 | 26 Nm | 26*58 |
Every model in this catalogue is also available as a custom build. Reach, nose profile, output interface, angle, coolant routing and the stop arrangement can all be changed to suit the operation and the machine.
Already using another brand? Send us the drawing or the article number of the head you run today and Mongtec will convert it to an equivalent Mongtec head — same mounting, same reach, same output. You do not need to re-work the fixture or the programme.
