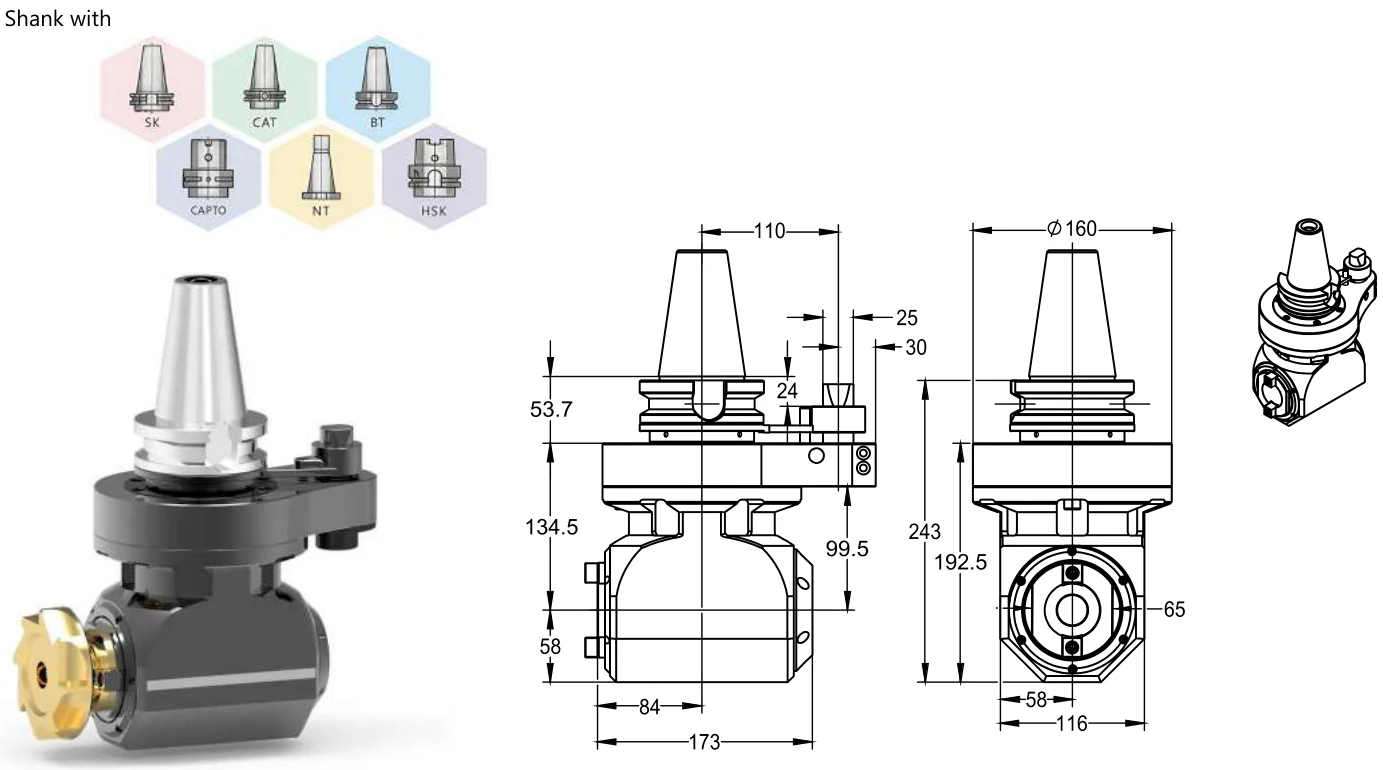

A BT50 shank driving a BT40 output. The head accepts any standard BT40 holder, so the same head covers collet chucks, shell mills, drill chucks and tapping holders without a dedicated nose for each.
| Model | Driving shank | Max. RPM | Chucking range | Torque | Through dia. |
|---|---|---|---|---|---|
| BT50QBT40Q4X90° | BT50 | 2500 RPM | BT40 | 200 Nm | D200 |
| BT50QBT40Q160/Flange Link | BT50 | 3000 RPM | BT40 | 65 Nm | D190 |
| BT50QBT40Q300 | BT50 | 2500 RPM | BT40 | 100 Nm | D180 |
| BT50QBT40Q580L | BT50 | 2500 RPM | BT40 | 100 Nm | D180 |
| BT50QBT40Q700 | BT50 | 3000 RPM | BT40 | 100 Nm | D200 |
| BT50QBT40 | BT50 | 2500 RPM | BT40 | 100 Nm | D200 |
Every model in this catalogue is also available as a custom build. Reach, nose profile, output interface, angle, coolant routing and the stop arrangement can all be changed to suit the operation and the machine.
Already using another brand? Send us the drawing or the article number of the head you run today and Mongtec will convert it to an equivalent Mongtec head — same mounting, same reach, same output. You do not need to re-work the fixture or the programme.
