HSK-T (ISO 12164-3) is the HSK form made for turning — it goes into the spindle of a mill-turn centre or a multi-axis lathe and takes the cutting load of a turning operation, not a milling one. Mongtec supplies three things on it: boring bar holders, square-shank tool blocks, and integral ISO turning tools that bolt straight onto the taper with no adapter in between.
Published range: 112 HSK-T63 turning tool holders and 101 HSK-T100 turning tool holders across 10 ISO insert families (right, left and neutral hand), plus 36 HSK-T50 / T63 / T100 tool blocks and adaptors. In DIN catalogue notation the same sizes are written HSK63T and HSK100T.
| Boring bar holder | HSK40T to HSK100T, bores 6 to 50 mm |
|---|---|

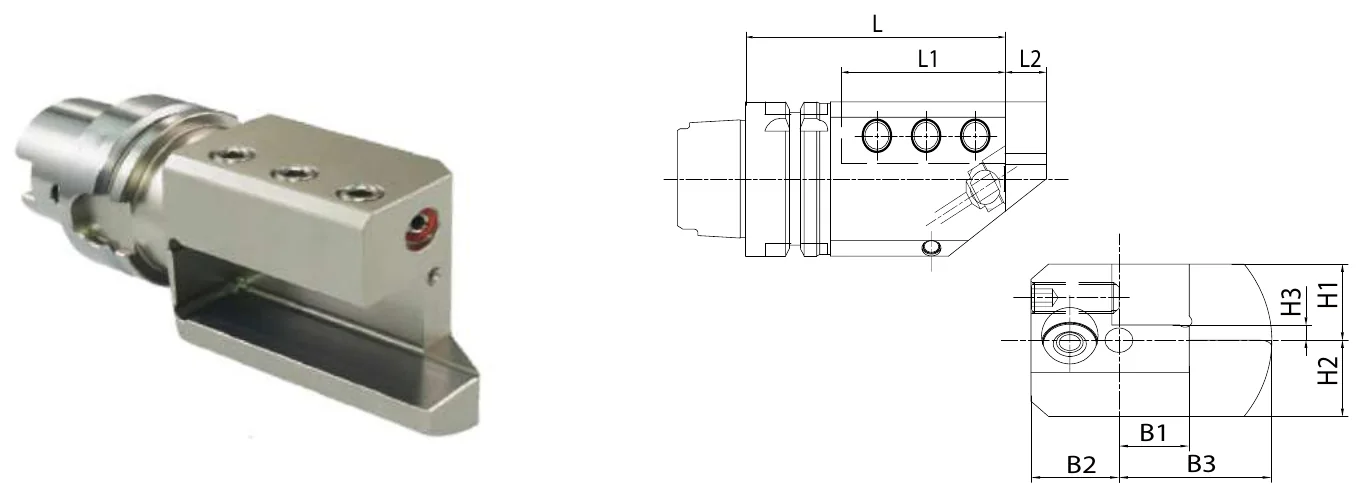

| Turning tool block | Square shank, for facing, external, cut-off and combined operations |
| Integral ISO turning tool | 38 designations built directly on the HSK-T taper — one fewer joint in the loop |
The full catalogue programme, with every article number and the dimensions the catalogue prints for it:
| Page | Article numbers | Covers |
|---|---|---|
| HSK-T63 turning tool holders | 112 | 10 ISO insert families, R / L / N hand |
| HSK-T100 turning tool holders | 101 | 10 ISO insert families, R / L / N hand |
| HSK-T tool blocks and adaptors | 36 | SBV / SBH / SBN / SBT, HSK-T50 / T63 / T100 |
HSK40T · HSK50T · HSK63T · HSK100T
6 / 8 / 10 / 12 / 16 / 20 / 25 / 32 / 40 / 50 mm
20 × 20 · 25 × 25 · 32 × 32 mm, right and left hand
The tool designation follows ISO 5608, so the code itself tells you the geometry. Mongtec covers 38 designations from DCLNR through SVQCL. These four positions are what most people need at the machine:
| C | Top clamp |
|---|---|
| D | Top clamp, insert with centre hole |
| M | Pin and top clamp |
| P | Pin with wedge or lever |
| S | Screw |
| C | 80° |
|---|---|
| D | 55° |
| S | 90° |
| V | 35° |
| W | 80° |
| A / G | 90° |
|---|---|
| B / R | 75° |
| D / S | 45° |
| H / Q | 107.5° |
| J / U | 93° |
| L | 95° |
| M | 50° |
| N | 62.5° |
| P | 117.5° |
| V | 72.5° |
CN..1204 · CN..1606 · CN..1906 · DN..1506 · SN..1204 · VN..1604 · WN..0804 · CC..1204 · DC..11T3 · SC..1204 · VB..1604 · VC..1604 · VC..1103
Very few makers outside Japan and Europe cover HSK-T turning. If the designation you run is not in the list above, ask — the range is wider than what is shown here and specials are normal for this interface.
Body diameters (D, D1), gauge lengths (L2, L1) and the set-screw thread (G) are in the printed catalogue and are supplied with the quotation.
